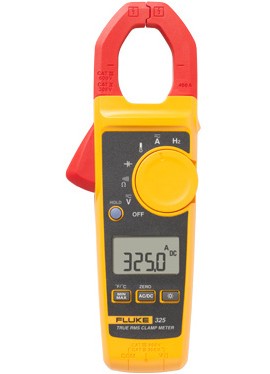

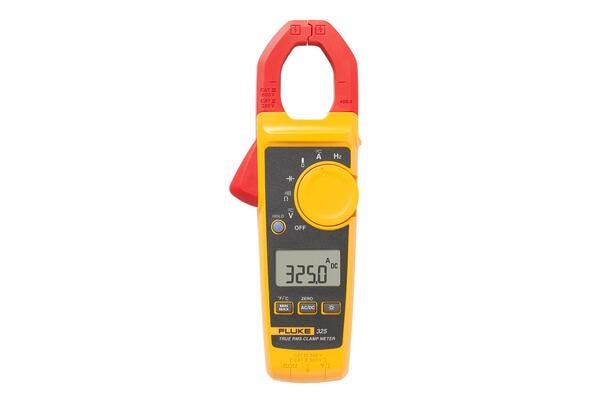

Fluke 325 True RMS Clamp Meter


request for quote

Description

Product overview: Fluke 325 True RMS Clamp Meter

Troubleshoot problems safely and accurately

The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:

  • DC current
  • DC voltage
  • Temperature
  • Frequency

You’ll carry fewer tools in your bag and get more work done.

Covers most problems you see day-in, day-out

The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:

  • Measures AC/DC current up to 400 A through jaw
  • AC/DC voltage to 600 V using test leads
  • Measures frequency from 5 Hz to 500 Hz; resistance to 40 kΩ
  • Measures temperature from -10 °C to 400 °C with included K-type thermocouple
  • Min/Max function records important values

Comes with a two-year warranty

Key features

  • Rugged, reliable True-RMS clamp meter with dc current and frequency measurements
  • Measures AC and DC current to 400 A
  • Measures AC voltage and DC voltage to 600 V
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures resistance to 40 kΩ with continuity detection
  • Measures frequency to 500 Hz

Specifications: Fluke 325 True RMS Clamp Meter

Specifications
AC current Range 40.00 A / 400.0 A
Accuracy 2% ± 5 digits (45 Hz to 65 Hz)
2.5% ± 5 digits (65 Hz to 400 Hz)
DC current Range 40.00 A / 400.0 A
Accuracy 2% ± 5 digits
AC voltage Range 600.0 V
Accuracy 1.5% ± 5 digits
DC voltage Range 600.0 V
Accuracy 1.0% ± 5 digits
Resistance Range 400.0 Ω / 4000 Ω / 40.00 kΩ
Accuracy 1.0% ± 5 digits
Continuity ≤ 30 Ω
Capacitance
0 to 100.0 μF / 100μF to 1000 μF
Frequency 5.0 Hz to 500.0 Hz
AC response True-RMS
Backlight Yes
Data hold Yes
Contact temperature -10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max Yes
Size H x W x D (mm) 207 x 75 x 34
Max wire diameter 30 mm (600 MCM)
Weight 283 g
Category rating CAT III 600 V
CAT IV 300 V
Warranty Two-year
