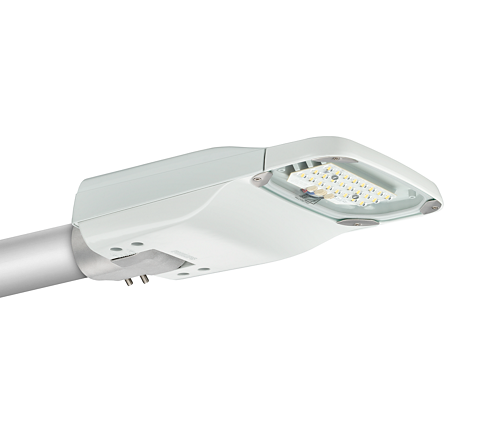

Philip Lighting BGP290 LED50-1F/740 II DM10 48/60S


request for quote

Description

General information
Lamp family code
LED50  [ LED module 5000 lm]
Light source color
740 neutral white
Light source replaceable
Yes
Number of gear units
1 unit
Driver/power unit/transformer
Power supply unit with DALI interface
Driver included
Yes
Optical cover/lens type
Flat glass
Luminaire light beam spread
157° - 33° x 55°
Control interface
DALI
Connection
2 Push-in connector 5-pole
Cable
-
Protection class IEC
Safety class II
Flammability mark
For mounting on normally flammable surfaces
CE mark
Yes
ENEC mark
ENEC plus mark
Warranty period
5 years
Optic type outdoor
Distribution medium 10
Constant light output
No
Number of products on MCB of 16 A type B
30
EU RoHS compliant
Yes
Light source engine type
LED
Product family code
BGP290  [ LumiStreet gen2 Nano]
Light technical
Upward light output ratio
0
Standard tilt angle posttop
Standard tilt angle side entry
Operating and electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Average CLO power consumption
- W
Inrush current
18 A
Inrush time
0.28 ms
Power Factor (Min)
0.98
Controls and dimming
Dimmable
Yes
Mechanical and housing
Housing Material
Aluminum
Reflector material
Polycarbonate
Optic material
Polymethyl methacrylate
Optical cover/lens material
Glass
Fixation material
Aluminum
Mounting device
Side-entry for diameter 48 to 60 mm
Optical cover/lens shape
Flat
Optical cover/lens finish
Clear
Overall length
379 mm
Overall width
232 mm
Overall height
92 mm
Effective projected area
0.02274 m²
Color
Gray
Dimensions (Height x Width x Depth)
92 x 232 x 379 mm
Approval and application
Ingress protection code
IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code
IK08  [ 6 J]
Surge Protection (Common/Differential)
Luminaire surge protection level until 6 kV differential mode and 8 kV common mode
Sustainability rating
-
Initial performance (IEC compliant)
Initial luminous flux (system flux)
4250 lm
Luminous flux tolerance
+/-7%
Initial LED luminaire efficacy
137 lm/W
Init. Corr. Color Temperature
4000 K
Init. Color Rendering Index
>70
Initial chromaticity
(0.38, 0.38) SDCM <5
Initial input power
31 W
