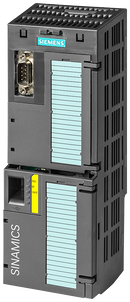

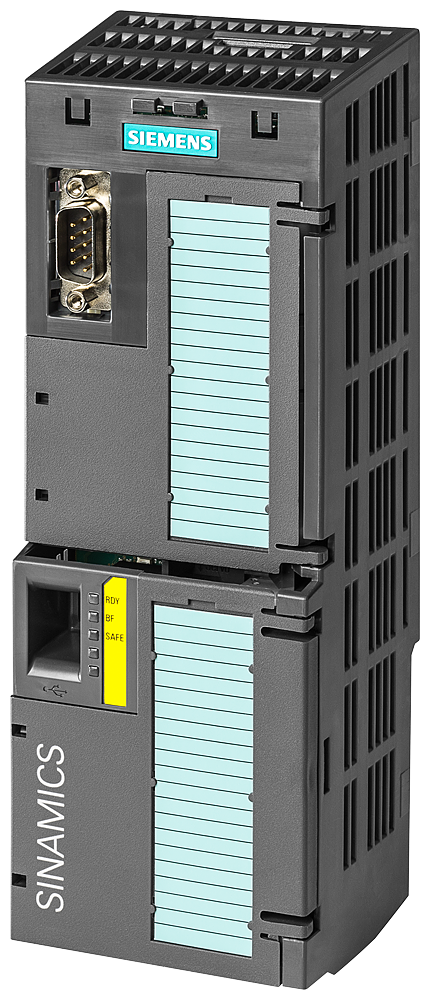

SIEMENS 6SL3246-0BA22-1BA0 SINAMICS CU250S-2 USS


request for quote

Description

SIEMENS 6SL32460BA221BA0;SINAMICS CU250S-2 USS;"SINAMICS G120 Control Unit CU250S-2 integrated RS485/USS/ MODBUS RTU supports vector control Basic positioner EPOS via License extended functions 4 configurable DI/DO 6 DI (3 F-DI) 5 DI 3 DO (1 F-DO) 2 AI

2 AO Safety Integrated STO SBC

SS1 Additional safety functions via ""EXTENDED SAFETY"" license Encoder interface: D-CLiQ+HTL/TTL/SSI Resolver/HTL via terminal Degree of protection IP20 USB and SD/MMC interface Control Unit SINAMICS CU250S-2 Control Unit for high performance applications in general machinery construction for modular SINAMICS G120 inverters. The CU250S-2 Control Unit is part of the modular SINAMICS G120 inverter (comprising power unit

control unit
operator panel). The control unit is suitable for single-motor drives with high requirements placed on the speed control. Extended safety functions as well as a large number of I/O allow complex applications to be addressed. For vector control
two encoders (position and speed) can be connected. This extension allows the device to be used for hoist/swivel/gantry and slewing applications. The CU250S-2 Control Unit controls and monitors the power unit (Power Module) and the connected motors; several control modes can be selected. It facilitates communication to a local or central control system as well as to the monitoring equipment – and is used to connect all process-related auxiliary equipment and external components (sensors
valves
contactors

DOWNLOAD DATASHEET

VIEW MORE PRODUCT DETAILS
