Description

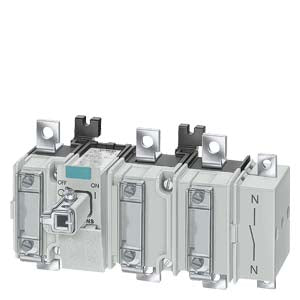

Siemens 3KA5130-1AE01 Switch disconnector in new design Iu=80 A, Ue = 690 V, 3-pole basic version without 8UC6 handle and shaft
Switch disconnector in new design Iu=80 A, Ue = 690 V, 3-pole basic version without 8UC6 handle and shaft Product phase-out since: 31.08.18 Successor:3KD2830-0NE20-0, different dimensions, some deviating technical values
| Model | ||||||||||
| product brand name | SENTRON | |||||||||
| product designation | Switch Disconnector 3KA | |||||||||
| Design type | For mounting and installation | |||||||||
| design of the operating mechanism | manual operating mechanism | |||||||||
| design of the load switch / strip form | No | |||||||||
| type of the driving mechanism / motor drive | No | |||||||||
| type of device | fixed mounting | |||||||||
| protection against electrical shock | finger-safe | |||||||||
| insulation voltage / rated value | 690 V | |||||||||
| type of voltage | AC/DC | |||||||||
| operating voltage ● at AC / at 50/60 Hz / rated value ● at DC / rated value |
690 V 440 V |
|||||||||
| Protection class | ||||||||||
| protection class IP | IP00 | |||||||||
| Dissipation | ||||||||||
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole |
4 W | |||||||||
| Current | ||||||||||
| Let-through current / I2 t / maximum permissible / in utilization category / AC-22 B / at 400 V |
130 000 A²·s | |||||||||
| Main circuit | ||||||||||
| number of poles / for main current circuit | 3 | |||||||||
| operating power | ||||||||||
| ● at AC-23 A / at 400 V / at 50/60 Hz / rated value | 40 000 W | |||||||||
| ● at AC-23 A / at 400 V / rated value | 40 000 W | |||||||||
| ● at AC-23 A / at 500 V / rated value | 40 000 W | |||||||||
| ● at AC-23 A / at 690 V / at 50/60 Hz / rated value | 50 000 W | |||||||||
| operating current / rated value | 80 A | |||||||||
| Rated current Ie / maximum / in utilization category | ||||||||||
| ● AC-21 A / at 400 V | 80 A | |||||||||
| ● AC-21 A / at 500 V | 80 A | |||||||||
| ● AC-21 B / at 400 V | 80 A | |||||||||
| ● AC-21 B / at 500 V | 80 A | |||||||||
| ● AC-22 A / at 400 V | 80 A | |||||||||
| ● AC-22 A / at 500 V | 80 A | |||||||||
| ● AC-22 B / at 400 V | 80 A | |||||||||
| ● AC-22 B / at 500 V | 80 A | |||||||||
| Auxiliary circuit | ||||||||||
| number of CO contacts / for auxiliary contacts | 0 | |||||||||
| number of NC contacts / for auxiliary contacts | 0 | |||||||||
| number of NO contacts / for auxiliary contacts | 0 | |||||||||
| Short circuit | ||||||||||
| maximum short-circuit current breaking capacity (Icu) / at 400 V / rated value |
100 kA | |||||||||
| Conditional rated short-circuit current | ||||||||||
| ● 400V | 120 kA | |||||||||
| ● 500V | 120 kA | |||||||||
| ● in utilization category / AC-21 A / at 400 V | 120 kA | |||||||||
| ● in utilization category / AC-21 A / at 500 V | 120 kA | |||||||||
| ● in utilization category / AC-21 B / at 400 V | 120 kA | |||||||||
| ● in utilization category / AC-21 B / at 500 V | 120 kA | |||||||||
| ● in utilization category / AC-22 A / at 400 V | 120 kA | |||||||||
| ● in utilization category / AC-22 A / at 500 V | 120 kA | |||||||||
| ● in utilization category / AC-22 B / at 400 V | 120 kA | |||||||||
| ● in utilization category / AC-22 B / at 500 V | 120 kA | |||||||||
| Connections | ||||||||||
| connectable conductor cross-section / for main contacts ● stranded / maximum |
35 mm² | |||||||||
| Type of connection, main circuit | Flat-type screw terminal | |||||||||
| type of electrical connection ● for main current circuit |
flat connector | |||||||||
| Mechanical Design | ||||||||||
| height | 105 mm | |||||||||
| width | 120 mm | |||||||||
| depth | 150 mm | |||||||||
| Type of mounting | fixed mounted | |||||||||
| mounting type | floor mounting | |||||||||
| mounting type ● front mounting with 4-hole attachment ● front mounting with central attachment ● rail mounting |
No No No | |||||||||
| mounting position | any | |||||||||
| net weight | 0.9 kg | |||||||||
| Environmental conditions | ||||||||||
| ambient temperature / during operation ● minimum ● maximum |
-25 °C 55 °C |
|||||||||
| ambient temperature / during storage ● minimum ● maximum |
-50 °C 80 °C |
|||||||||
| Certificates | ||||||||||
| reference code ● acc. to DIN EN 61346-2 ● acc. to DIN EN 81346-2 |
Q Q | |||||||||
