Description

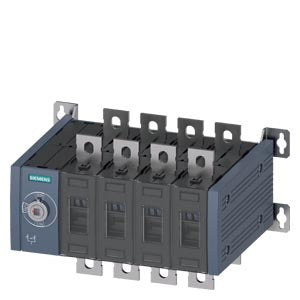

TRANSFER SWITCH EQUIP MTSE 415V 200A 4P.
| Model | ||||||||||
| product brand name | SENTRON | |||||||||
| product designation | 3KC transfer switching equipment | |||||||||
| design of the product | manually operated | |||||||||
| display version / for switch position indicator door- coupling rotary operating mechanism |
I ON- O OFF- II ON | |||||||||
| design of the operating mechanism | Without handle | |||||||||
| design of handle | without | |||||||||
| type of the driving mechanism | Front operating mechanism | |||||||||
| type of the driving mechanism / motor drive | No | |||||||||
| General technical data | ||||||||||
| number of poles | 4 | |||||||||
| type of device | fixed mounting | |||||||||
| size of switch disconnector | 3 | |||||||||
| I2t value ● with closed switch / for combination switch + fuse / at 500 V / maximum ● with closed switch / at 690 V / for combination switch + gG fuse / maximum |
426 500 A²·s 348 000 A²·s |
|||||||||
| ● of the fuse / at 415 V / maximum permissible | 780 005 A²·s | |||||||||
| ● of the fuse / at 500 V / maximum permissible | 780 005 A²·s | |||||||||
| ● of the gG fuse / at 690 V / maximum permissible | 525 005 A²·s | |||||||||
| ● with closed switch / for combination switch + fuse / at 415 V / maximum | 426 500 A²·s | |||||||||
| mechanical service life (switching cycles) / for function sequence O-I-O / typical |
10,000 | |||||||||
| position / of the switch operating mechanism | at the left end | |||||||||
| overvoltage category | IV | |||||||||
| degree of pollution | 3 | |||||||||
| insulation voltage ● rated value |
1 000 V | |||||||||
| Supply voltage | ||||||||||
| operating current / at AC / rated value | 200 A | |||||||||
| operating voltage ● at AC / at 50/60 Hz / rated value |
415 V | |||||||||
| Protection class | ||||||||||
| protection class IP | IP00 | |||||||||
| protection class IP | ||||||||||
| ● with closed switch / with cover or cable lug | IP20 | |||||||||
| cover | ||||||||||
| ● on the front | IP00 | |||||||||
| Dissipation | ||||||||||
| power loss [W] ● with conventional rated thermal current / per pole ● with conventional rated thermal current / per device ● for rated value of the current / at AC / in hot operating state / per pole |
4 W 16 W 4 W |
|||||||||
| ● operating current / at AC-23 A / at 690 V / rated value |
200 A | |||||||||
| ● operating current / at AC-23 A / at 500 V / rated value | 200 A | |||||||||
| ● operating current / at AC-22 A / at 690 V / rated value | 200 A | |||||||||
| ● operating current / at AC-22 A / at 500 V / rated value | 200 A | |||||||||
| ● operating current / at AC-21 / at 690 V / rated value | 200 A | |||||||||
| ● operating current / at AC-21 / at 500 V / rated value | 200 A | |||||||||
| ● operating current / at AC-21 A / at 415 V / rated value |
200 A | |||||||||
| ● operating current / at AC-22 A / at 415 V / rated value | 200 A | |||||||||
| ● operating current / at AC-23 A / at 415 V / rated value | 200 A | |||||||||
| ● operating current / at AC-31 B / at 415 V / rated value | 200 A | |||||||||
| ● operating current / at AC-32 B / at 415 V / rated value | 200 A | |||||||||
| ● operating current / at AC-33 B / at 415 V / rated value | 200 A | |||||||||
| ● operating current / at AC-33 iB / at 415 V / rated value | 200 A | |||||||||
| ● operating current / at AC-35 B / at 400 V / rated value | 200 A | |||||||||
| continuous current | ||||||||||
| ● rated value | 200 A | |||||||||
| ● at 40 °C / rated value | 200 A | |||||||||
| ● at 45 °C / rated value | 200 A | |||||||||
| ● at 50 °C / rated value | 200 A | |||||||||
| ● at 55 °C / rated value | 200 A | |||||||||
| ● at 60 °C / rated value | 200 A | |||||||||
| ● at 65 °C / rated value | 200 A | |||||||||
| ● at 70 °C / rated value | 200 A | |||||||||
| operating current / of upstream fuse / rated value | 250 A | |||||||||
| let-through current / of the fuse / at 500 V / maximum permissible |
24 872 A | |||||||||
| let-through current / of the gG fuse / at 690 V / maximum permissible |
25 005 A | |||||||||
| let-through current / with closed switch | ||||||||||
| ● at 690 V / for combination switch + gG fuse / | 22 700 A | |||||||||
| maximum permissible | ||||||||||
| ● for combination switch + fuse / at 500 V / | 25 100 A | |||||||||
| maximum permissible | ||||||||||
| Main circuit | ||||||||||
| operating power ● at AC-23 A / at 400 V / at 50/60 Hz / rated value ● at AC-23 A / at 500 V / rated value ● at AC-23 A / at 690 V / at 50/60 Hz / rated value |
110 kW 132 kW 185 kW |
|||||||||
| operating current / rated value | 200 A | |||||||||
| Auxiliary circuit | ||||||||||
| number of connected NC contacts / for auxiliary contacts |
0 | |||||||||
| number of connected NO contacts / for auxiliary contacts |
0 | |||||||||
| number of connected CO contacts / for auxiliary contacts |
0 | |||||||||
| number of CO contacts / for auxiliary contacts | 0 | |||||||||
| number of NC contacts / for auxiliary contacts | 12 | |||||||||
| number of NO contacts / for auxiliary contacts | 12 | |||||||||
| suitability for use ● main switch ● switch disconnector ● EMERGENCY OFF switch ● safety switch ● maintenance/repair switch |
Yes Yes Yes Yes Yes | |||||||||
| product feature / interlock | No | |||||||||
| product extension / auxiliary switch | Yes | |||||||||
| product extension / optional ● motor drive ● voltage trigger |
No No | |||||||||
| Short circuit | ||||||||||
| short-circuit current making capacity (Icm) / for switch disconnector ● at AC 415 V / without fuse link / acc. to IEC 60947-6-1 / rated value / minimum ● at AC 690 V / without fuse link / acc. to IEC 60947-3 / rated value / minimum |
36 kA 26 kA |
|||||||||
| conditional short-circuit current / with line-side fuse protection |
||||||||||
| ● at 415 V / by gG fuse / acc. to IEC 60947-6-1 / rated value | 100 kA | |||||||||
| ● at 415 V / by gG fuse / rated value | 100 kA | |||||||||
| ● at 500 V / by gG fuse / acc. to IEC 60947-3 / rated value | 100 kA | |||||||||
| ● at 690 V / by gG fuse / acc. to IEC 60947-3 / rated value | 65 kA | |||||||||
| Connections | ||||||||||
| type of connectable conductor cross-sections / for aluminum conductor ● stranded / with lug |
1x (25 ... 240 mm²), 2x (25 ... 120 mm²) | |||||||||
| type of connectable conductor cross-sections ● with combination of Al conductor+switch ● for copper busbar |
200 A / 240 mm² 1x (30x10 mm²) | |||||||||
| type of connectable conductor cross-sections / for copper conductor ● stranded / with lug / acc. to DIN 46234 ● stranded / with lug / acc. to DIN 46235 |
1x (6 ... 240 mm²), 2x (6 ... 150 mm²) 1x (16 ... 185 mm²), 2x (16 ...150 mm²) |
|||||||||
| type of electrical connection ● for main current circuit |
busbar connection | |||||||||
| Mechanical Design | ||||||||||
| height | 164 mm | |||||||||
| width | 279 mm | |||||||||
| depth | 197.2 mm | |||||||||
| mounting type | screw fixing | |||||||||
| mounting type ● front mounting with 4-hole attachment ● front mounting with central attachment ● rail mounting |
No No No | |||||||||
| net weight | 6 500 g | |||||||||
| Environmental conditions | ||||||||||
| ambient temperature / during operation ● minimum ● maximum |
-25 °C 70 °C |
|||||||||
| ambient temperature / during storage ● minimum ● maximum |
-50 °C 80 °C |
|||||||||
