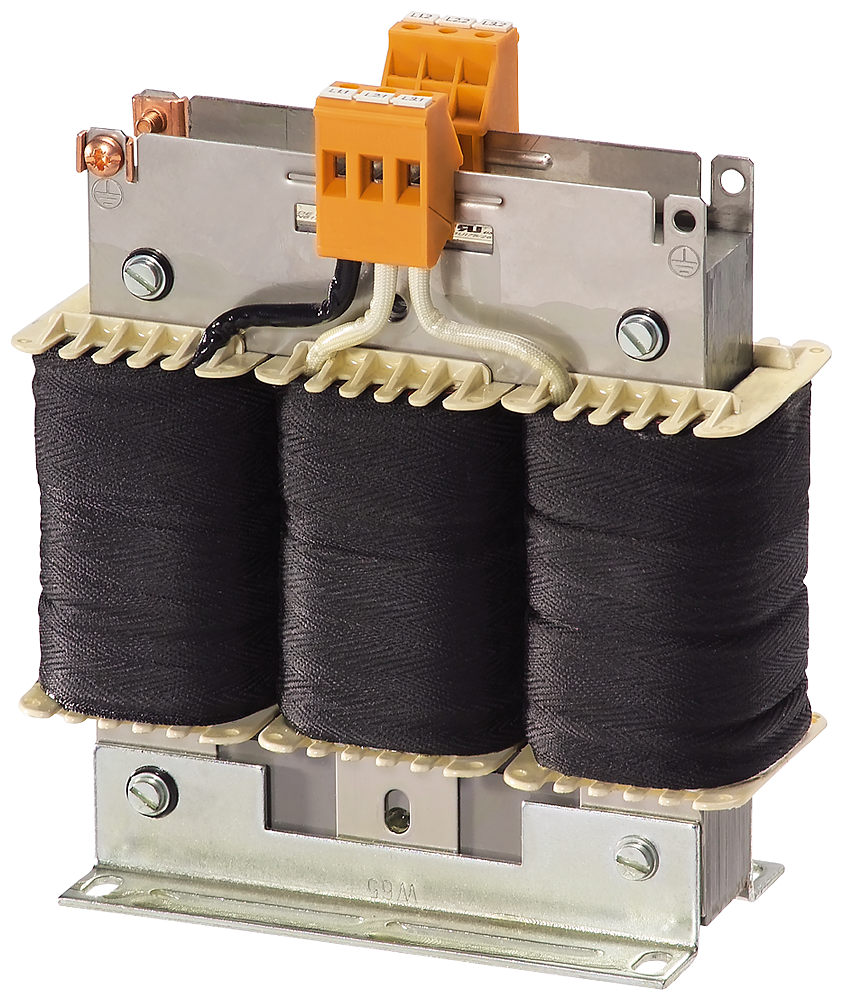

SIEMENS 6SL3000-0CE15-0AA0 line reactor 14,0 A ,


request for quote

Description

line reactor 14,0 A ,
SINAMICS LINE REACTOR INPUT: 3-PH. 660-690 V, 50/60 HZ, 270 A Electrical reactor SINAMICS line reactor Basic Line Module for the SINAMICS S120 converter system. A line reactor is required at a high network short-circuit power (i.e. low inductance of the supply cable). On one hand, this is to protect the converter itself from excessive harmonic currents and therefore from overload. On the other hand, it is to limit the line harmonic distortions to the permissible values. The harmonic currents are limited by the total inductance comprising the line reactor and supply cable inductance. The rated input current of the line reactors for the Basic Line Module is between 107 A and 270 A and is available in the three-phase voltage range 660 V to 690 V. SINAMICS – simply my drive.
DOWNLOAD DATASHEET

VIEW MORE PRODUCT DETAILS

VIEW ON YOUTUBE
