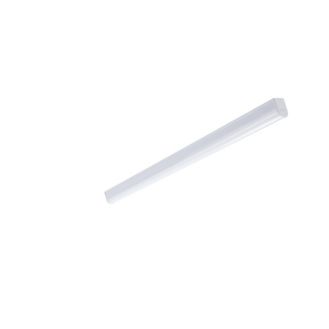

SIGNIFY PHILIP BN012C LED10/CW L600 G3 911401808382


Price:
₦14,031.88
request for quote

Description

SIGNIFY PHILIP BN012C LED10/CW L600 G3 911401808382

Specifications

General information
Light source color
865 cool daylight
Optical cover/lens type
Polycarbonate
Control interface
-
Protection class IEC
Safety class II
Flammability mark
For mounting on normally flammable surfaces
CE mark
CE mark
Number of products on MCB of 16 A type B
10
Light source engine type
LED
Operating and electrical
Input Voltage
220 to 240 V
Input Frequency
50 or 60 Hz
Inrush current
9 A
Power Factor (Min)
0.9
Controls and dimming
Dimmable
No

Mechanical and housing
Housing Material
Polycarbonate
Optical cover/lens material
Polycarbonate
Optical cover/lens finish
Opal
Overall length
574 mm
Overall width
28.4 mm
Overall height
35.7 mm
Effective projected area
0.016 m²
Color
White
Approval and application
Ingress protection code
IP20  [ Finger-protected]
Mech. impact protection code
IK02  [ 0.2 J standard]

Initial performance (IEC compliant)
Initial luminous flux (system flux)
1000 lm
Luminous flux tolerance
+/-10%
Initial LED luminaire efficacy
100 lm/W
Init. Corr. Color Temperature
6500 K
Init. Color Rendering Index
>80
Initial chromaticity
0.3123, 0.3282, SDCM=6
Initial input power
10 W
Power consumption tolerance
+/-10%
Application conditions
Ambient temperature range
-20 to +40 °C

Product data
Full product code
871951451783799
Order product name
BN012C LED10/CW L600 G3
EAN/UPC - Product
8719514517837
Order code
911401808382
Numerator - Quantity Per Pack
1
