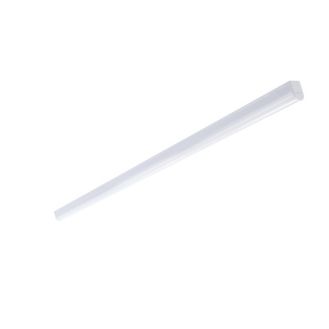

SIGNIFY PHILIP BN012C LED20/CW L1200 G3 911401808082

SIGNIFY PHILIP BN012C LED20/CW L1200 G3 911401808082

Specifications

General information

Light source color	865 cool daylight
Optical cover/lens type	Polycarbonate
Control interface	-
Protection class IEC	Safety class II
Flammability mark	For mounting on normally flammable surfaces

CE mark	CE mark
Number of products on MCB of 16 A type B	10
Light source engine type	LED

Operating and electrical

Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz

Inrush current	14.3 A
Power Factor (Min)	0.9

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Polycarbonate
Optical cover/lens material	Polycarbonate
Optical cover/lens finish	Opal
Overall length	1174 mm

Overall width	28.4 mm
Overall height	35.7 mm
Effective projected area	0.033 m²
Color	White

Approval and application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK02  [ 0.2 J standard]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	2000 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	100 lm/W
Init. Corr. Color Temperature	6500 K

Init. Color Rendering Index	>80
Initial chromaticity	0.3123, 0.3282, SDCM=6
Initial input power	20 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-20 to +40 °C

Product data

Full product code	871951451780699
Order product name	BN012C LED20/CW L1200 G3
EAN/UPC - Product	8719514517806
Order code	911401808082
Numerator - Quantity Per Pack	1

Numerator - Packs per outer box	40
Material Nr. (12NC)	911401808082
Net Weight (Piece)	0.246 kg
