CS Electric HRC Fuse 200Amp DIN Type With Blade Contact 02


Price:
₦6,900
request for quote

Description

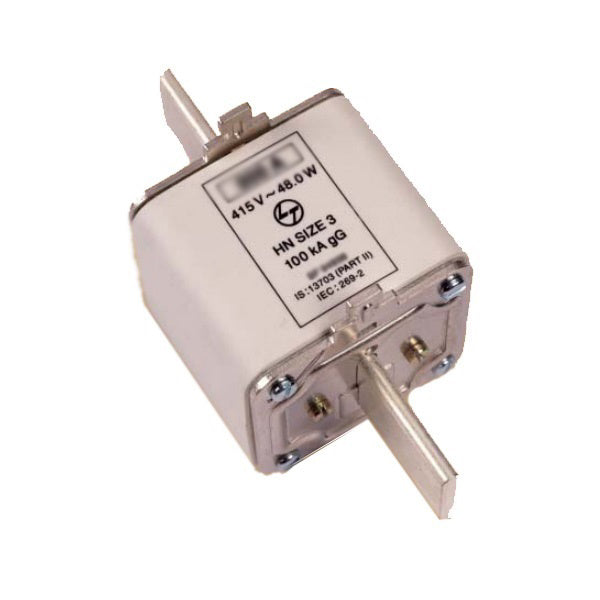

The HRC (High Rupturing Capacity) Fuse 200Amp DIN Type With Blade Contact 02 is an electrical safety device that protects electrical circuits and equipment from overcurrents.

The product specifications for this fuse are as follows:
Rated Current: 200 Amps
Rated Voltage: 415 Volts AC
Breaking Capacity: 80 kA
Number of Poles: 3
Type: DIN Type with Blade Contact 02
Operating Temperature: -5°C to 50°C
Material: High-grade non-conductive plastic and metal
Mounting: DIN rail mounting
Dimensions: 90mm x 170mm x 70mm (W x H x D)
Weight: 500 grams (approx.)
Standards: IEC 60269-1, IS/IEC 60269-1
This HRC fuse is designed to provide high levels of safety and protection in industrial environments. Its high breaking capacity ensures that it can withstand high fault currents, while its DIN Type with Blade Contact 02 makes it easy to install in electrical control panels.
