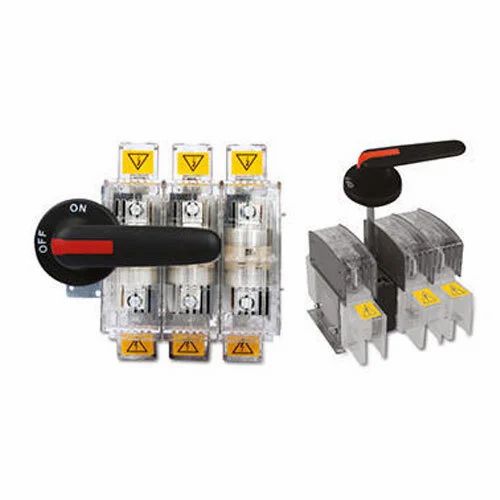

CS Electric Switch Disconnector Fuse 400 Amp


Price:
₦170,200
request for quote

Description

C & S Electric Switch Disconnector Fuse with a 400 amp rating:

Current rating: 400 amps
Voltage rating: up to 1000 volts AC
Breaking capacity: 50 kA or higher
Number of poles: 3
Fuse type: NH (also known as gG or aM) or BS88
Fuse size: size 2
Mounting: DIN rail or base mount
Enclosure rating: IP20
Operating temperature range: -25°C to +70°C
Auxiliary contacts: available for remote signaling or control
Standards: IEC 60947-3, UL 508, CSA C22.2 No. 14, CE
Contact material: silver-plated copper or silver-nickel
Contact resistance: <100 micro-ohms
Insulation voltage: 1000 volts AC
Insulation resistance: >1 mega-ohm
Mechanical durability: 10000 operations
Electrical durability: 1000 operations
Arcing time: <0.1 seconds
Terminal capacity: up to 300 mm²
Phase indication: available
Fuse indication: available
Locking device: available for padlocking in OFF position
Fuse removal: possible with the disconnector in the OFF position
Dimensions (W x H x D): 150 x 300 x 120 mm (approx.)
Weight: 3.5 kg
