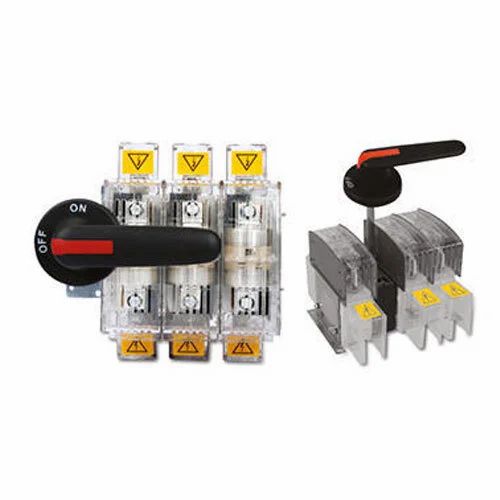

CS Electric Switch Disconnector Fuse 630 Amp


Price:
₦368,000
request for quote

Description

Features of Switch Disconnectors (Load Break Switch)

Brand: C & S Electric Limited
  • Model: CHD3-630A
  • Current rating: 630 amps
  • Voltage rating: up to 690 volts AC
  • Breaking capacity: 80 kA
  • Number of poles: 3
  • Fuse type: NH gG
  • Fuse size: size 2
  • Mounting: DIN rail
  • Enclosure rating: IP20
  • Operating temperature range: -25°C to +70°C
  • Auxiliary contacts: available for remote signaling or control
  • Dimensions (W x H x D): 190 x 335 x 145 mm
  • Weight: 4.5 kg (approx.)
  • Standards: IEC 60947-3, IS/IEC 60947-3, IS 13947-3, CE, RoHS
  • Contact material: silver-nickel
  • Contact resistance: <100 micro-ohms
  • Insulation voltage: 800 volts AC
  • Insulation resistance: >1 mega-ohm
  • Mechanical durability: 10000 operations
  • Electrical durability: 1000 operations
  • Arcing time: <0.1 seconds
  • Terminal capacity: up to 300 mm²
  • Phase indication: available
  • Fuse indication: available
  • Locking device: available for padlocking in OFF position
  • Fuse removal: possible with the disconnector in the OFF position



Looking for a trusted distributor of C & S Switchgears products? Look no further than Gil Automation. As a leading distributor of electrical and automation products, we offer a wide range of C & S Switchgears products, designed to meet the needs of a variety of industries.
