Description

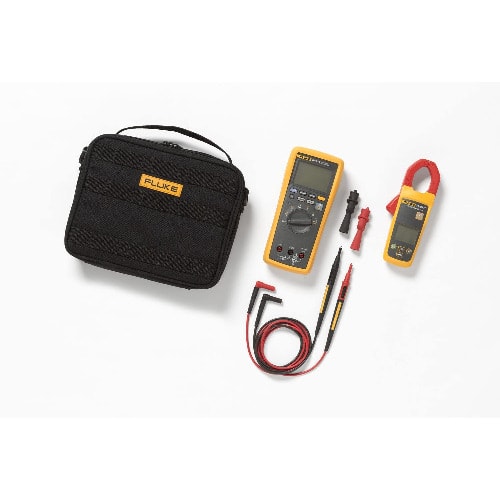

Fluke Fc Wireless Essential Kit With A3000
The Fluke a3000 FC Wireless AC Current Clamp Module is a fully functional true-RMS current clamp meter that wirelessly relays measurements to other Fluke Connect® enabled master units, listed below:
- Fluke 3000 FC DMM
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
The Fluke a3000 FC Wireless AC Current Clamp Module has all the essentials for convenient test and measurement troubleshooting:
- True-RMS AC clamp meter
- Measure up to 400 A AC
- Use as a standalone meter or as part of the system
- Logging function for recording and saving up to 65,000 readings
- Inrush function
Specifications: Fluke a3000 FC Wireless AC Current Clamp Kit
Fluke 3000 FC Series Wireless Multimeter
* For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. Accuracy specifications take the form of ±([% of Reading] + [Number of least significant digits]).
| AC Voltage | |||
| Range¹ / resolution | 600.0 mV / 0.1 mV 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V |
||
| Accuracy | 45 Hz to 500 Hz | 1.0% + 3 | |
| 500 Hz to 1 kHz | 2.0% + 3 | ||
| 1. All AC voltage ranges are specified from 1% of range to 100% of range. 2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3. 4. Do not exceed 107 V-Hz. |
|||
| DC Voltage, Continuity, Resistance, Diode Test and Capacitance | |||
| mV | Range / resolution | 600.0 mV / 0.1 mV | |
| Accuracy | 0.09% + 2 | ||
| V | Range / resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V |
|
| Accuracy | 0.09% + 2 0.15% + 2 |
||
| ))) | Range / resolution | 600 Ω / 1 Ω | |
| Accuracy | Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer. | ||
| Ω | Range / resolution | 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 60.00 kΩ / 0.1 kΩ 600.0 kΩ / 0.001 MΩ 50.00 MΩ / 0.01 MΩ |
|
| Accuracy | 0.5% + 2 0.5% + 1 1.5% + 3 |
||
| Diode test | Range / resolution | 2.000 V / 0.001 V | |
| Accuracy | 1% + 2 | ||
| µF | Range / resolution | 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF1 μF |
|
| Accuracy | 1.2% + 2 10% typical |
||
| 1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2. | |||
| AC and DC Current | |||
| mA AC (45 Hz to 1 kHz) |
Range / resolution | 60.00 mA / 0.01 mA 400.0 mA/ 0.1 mA |
|
| Accuracy | 1.5% + 3 | ||
| mA DC | Range / resolution | 60.00 mA / 0.01 mA 400.0 mA/ 0.1 mA |
|
| Accuracy | 0.5% + 3 | ||
| 1. All AC current ranges are specified from 5% of range to 100% of range. 2. Input burden voltage (typical): 400 mA input 2 mV/mA. 3. 400.0 mA accuracy specified up to 600 mA overload. |
|||
| Frequency | |||
| Range / resolution | 99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 kHz 99.99 kHz / 0.01 kHz |
||
| Accuracy | 0.1% + 1 | ||
| 1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps. | |||
| Input Characteristics | |||
 |
Overload protection | 1100 Vrms | |
| Input impedance (nominal) | > 10 MΩ < 100 pF | ||
| Common mode rejection ratio (1 kΩ unbalance) |
> 120 dB at DC, 50 Hz or 60 Hz | ||
| Normal mode rejection | > 60 dB at 50 Hz or 60 Hz | ||
 |
Overload protection | 1100 Vrms | |
| Input impedance (nominal) | > 10 MΩ < 100 pF | ||
| Common mode rejection ratio (1 kΩ unbalance) |
> 60 dB, DC to 60 Hz | ||
| Normal mode rejection | > 60 dB at 50 Hz or 60 Hz | ||
 |
Overload protection | 1100 Vrms | |
| Input impedance (nominal) | > 10 MΩ < 100 pF | ||
| Common mode rejection ratio (1 kΩ unbalance) |
> 120 dB at DC, 50 Hz or 60 Hz | ||
| Normal mode rejection | > 60 dB at 50 Hz or 60 Hz | ||
| Open Circuit Test Voltage | |||
 |
Overload protection | 1100 Vrms | |
| Input impedance (nominal) | < 2.7 VDC | ||
| Full scale voltage to 6 MΩ Full scale voltage 50 MΩ |
< 0.7 VDC < 0.9 VDC |
||
| Typical short circuit current | < 350 mA | ||
 |
Overload protection | 1100 Vrms | |
| Input impedance (nominal) | < 2.7 VDC | ||
| Full scale voltage to 6 MΩ Full scale voltage 50 MΩ |
2.000 VDC | ||
| Typical short circuit current | < 1.1 mA | ||
| mA Function | |||
| Overload protection | Fused, 44/100 A, 1000 V FAST Fuse | ||
| Overload | 600 mA overload for 2 minutes maximum, 10 minutes rest minimum | ||
| MIN/MAX Recording Accuracy | |||
| DC functions | ±12 counts for changes > 350 mS in duration. | ||
| AC functions | ±40 counts for changes > 900 mS in duration. | ||
| General Specifications | |||
| Maximum voltage between any terminal and earth ground | 1000 VDC or AC rms | ||
| Ω fuse protection from A inputs | 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only | ||
| Display (LCD) | Update rate | 4/sec | |
| Volts, amps, ohms | 6000 counts | ||
| Frequency | 10,000 counts | ||
| Capacitance | 1,000 counts | ||
| Battery type | Three AA Alkaline batteries, NEDA 15A IEC LR6 | ||
| Battery life | 250 hours minimum | ||
| RF communications | 2.4 GHZ ISM Band | ||
| RF communication range | Open air, unobstructed | Up to 20 m | |
| Obstructed, sheetrock wall | Up to 6.5 m | ||
| Obstructed, concrete wall, or steel electrical enclosure | Up to 3.5 m | ||
| Temperature | Operating | -10°C to 50°C | |
| Storage | -40°C to 60°C | ||
| Temperature coefficient | 0.1 x (specified accuracy) / °C (< 18°C or > 28°C) | ||
| Relative humidity | 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C) |
||
| Altitude | Operating | 2,000 m | |
| Storage | 12,000 m | ||
| Electromagnetic compatibility EMI, RFI, EMC, RF |
EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE |
||
| Safety compliance | ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1:2010 |
||
| Certifications | CSA, FCC, CE | ||
| Ingress Protection (IP) rating | IP54 | ||
| Pollution Degree | 2 | ||
| Size (H x W x L) | 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) | ||
| Weight | 340 g (12 oz) | ||
| Not compatible with Fluke CNX test tools | |||
