Fluke i30 AC/DC Current Clamp (30A)


request for quote

Description

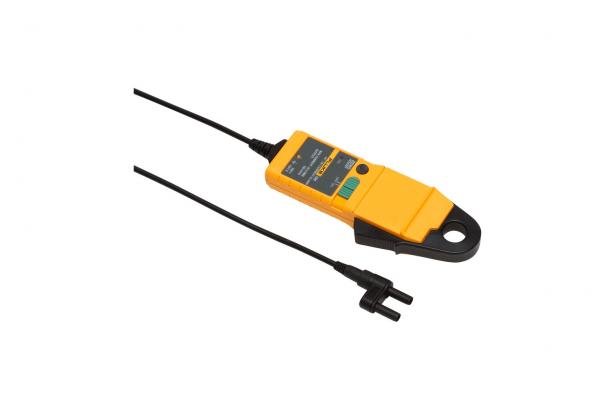

Product overview: Fluke i30 AC/DC Current Clamp

The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments for accurate non-intrusive current measurement.

Specifications: Fluke i30 AC/DC Current Clamp

Electrical Specifications
Specified current range 30 mA to 30 A DC, 30 mA to 20 A AC rms
Usable current range 5 mA to 30 A DC, 30 mA to 20 A AC rms
Crest Factor 1.4 in
Output sensitivity 100 mV/A
Accuracy (at +25°C) ±1% of reading ±2 mA
Resolution ±1 mA
Load impedance > 10 k Ohms and ≤ 100pF
Conductor position sensitivity ±1% relative to center reading
Frequency range DC to 20 kHz (-0.5 dB)
Temperature coefficient ±0.01% of reading/°C
Power supply 9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
Working voltage (see Safety Standards section) 300 V AC rms or DC
General Specifications
Maximum conductor size 19 mm diameter
Output connection 4 mm safety connector
Output zero Manual adjust via thumbwheel
Cable length 1.5 meters
Operating temperature range 0°C to +50°C
Storage temperature range (with battery removed) -20°C to +85°C
Operating humidity 15% to 85% (non-condensing)
Weight 250 g
Safety IEC 61010-1, Pollution Degree 2
IEC 61010-2- 032: CAT III 300V
Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc and frequencies below 1 kHz.
EMC Compatibility IEC 61326-1: Portable Electromagnetic Environment
