Fluke T5-600 Electrical Tester


Price:
₦65,775.60

Description

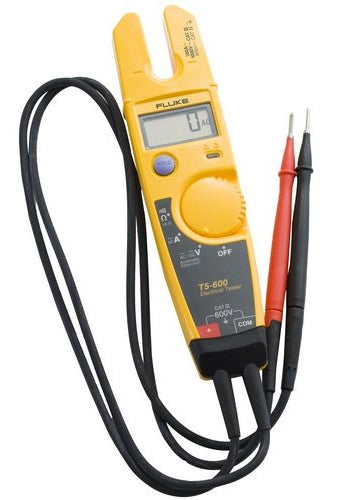

Product overview: Fluke T5-600 Electrical Tester

The T5-600 Electrical Tester is a versatile troubleshooting tool you can carry to every job site. Use it to check voltage, continuity, and current, all with one compact, rugged tool. Just select volts, ohms, or current and the tester does the rest. For higher voltage applications check out the Fluke T5-1000.

This meter is perfect for my use as I do HVAC and Electrical work, and this will give me what I need for troubleshooting and performance of equipment.” - Paul

Measure current up to 100 A without breaking the circuit with OpenJaw™ design

The trendsetting OpenJaw™ design allows for fast and easy current measurement, safely and without metallic contact to a live conductor. The integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester would be able to. The T5-600 is also designed to:

  • Withstand a 10 ft. (3 m) drop
  • Conserve battery life with auto-off mode
  • Fit in one hand with handy probe storage in the back of the holster
  • Accept Fluke accessory test clips with the test leads

Meter automatically selects AC or DC voltage for tests up to 600 V

Voltage tests are faster and easier than ever before. Just turn the knob to voltage (V) and place your leads on the test points. The T5-600 auto-selects either AC or DC voltage, depending on what is detected. This meter is suitable for both residential or commercial applications and is designed to keep you safe with a CAT III 600 V rating.

Key features

  • Measure current up to 100 A without breaking the circuit
  • Meter automatically selects AC or DC voltage, up to 600 V
  • Resistance measurements up to 1000 Ω plus continuity test
  • Work in tight spaces with detachable SlimReach™ probe tips

Specifications: Fluke T5-600 Electrical Tester

Specifications
Jaw opening 12.9 mm (0.5 in)
Max wire size 1/0 THHN Cable
Current range AC rms 0 to 100.0 A
Accuracy AC current (50/60 Hz) 3% ± 3 counts
AC response Averaging
Voltage range AC/DC 0 to 600 V
Voltage accuracy AC 1.5% ± 2 counts
DC 1% ± 1 count
Resistance range 0 to 1000 Ω
Continuity beeper threshold On at < 25 Ω, off at > 400 Ω
Volts indicator LED threshold Guaranteed on by 30 V AC
Environmental Specifications
Operating temperature -10°C to 50°C
Storage temperature -30°C to 60°C
Humidity (without condensation) 0% to 95% (5°C to 30°C);
0% to 75% (30°C to 40°C);
0% to 45% (40°C to 50°C)
Dust/water resistance Yes
Operating altitude 2000 meters max
Temperature coefficient 0.1 x (specified accuracy)/°C (< 18°C or > 28°C)
Safety Specifications
Measurement Category IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac
Agency approvals CSA, TUV
Maximum voltage 600 V between any terminal and earth ground
Mechanical and General Specifications
Size 30.5 x 51 x 203 mm
Weight 300 g
Warranty Two-years
Battery life 200 hour zinc chloride, 400 hour alkaline
Battery type 2 x AA
Low battery indicator Yes
Current sensor opening 12.9 mm
