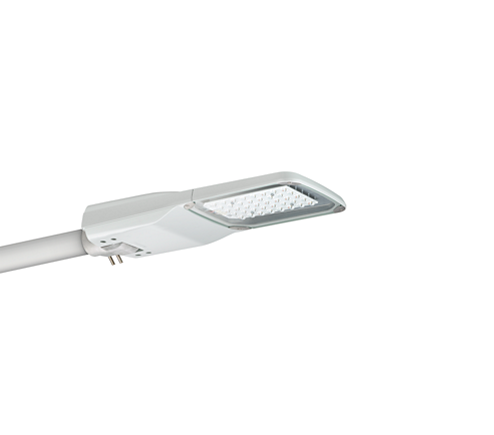

Philip Lighting BGP292 LED35-4S/830 II DM11 CLO S05Z1Z1-


request for quote

Description

General information
Lamp family code
LED35  [ LED module 3500 lm]
Light source color
830 warm white
Light source replaceable
Yes
Number of gear units
1 unit
Driver/power unit/transformer
Power supply unit regulating with constant light output
Driver included
Yes
Optical cover/lens type
Flat glass
Luminaire light beam spread
160° - 42° x 54°
Control interface
-
Connection
2 Push-in connector 5-pole
Cable
Cable 10 m without plug
Protection class IEC
Safety class II
Flammability mark
For mounting on normally flammable surfaces
CE mark
Yes
ENEC mark
ENEC plus mark
Warranty period
5 years
Optic type outdoor
Distribution medium 11
Remarks
* At extreme ambient temperatures the luminaire might automatically dim down to protect components
Constant light output
Yes
Number of products on MCB of 16 A type B
26
EU RoHS compliant
Yes
Light source engine type
LED
Service tag
Yes
Serviceability class
Class A, luminaire is equipped with serviceable parts (when applicable): LED board, driver, control units, surge protection device, optics, front cover and mechanical parts
Product family code
BGP292  [ LUMISTREET GEN2 MINI]
Light technical
Upward light output ratio
0
Standard tilt angle posttop
Standard tilt angle side entry
Operating and electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Initial CLO power consumption
27 W
Average CLO power consumption
27 W
End CLO power consumption
27.5 W
Inrush current
21 A
Inrush time
0.225 ms
Power Factor (Min)
0.97
Controls and dimming
Dimmable
No
Mechanical and housing
Housing Material
Aluminum die cast
Reflector material
Polycarbonate
Optic material
Polymethyl methacrylate
Optical cover/lens material
Glass
Fixation material
Aluminum
Mounting device
Post-top for diameter 48 mm
Optical cover/lens shape
Flat
Optical cover/lens finish
Clear
Overall length
620 mm
Overall width
234 mm
Overall height
95 mm
Effective projected area
0.0251 m²
Color
Gray
Dimensions (Height x Width x Depth)
95 x 234 x 620 mm
Approval and application
Ingress protection code
IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code
IK08  [ 5 J vandal-protected]
Surge Protection (Common/Differential)
Luminaire surge protection level until 6 kV differential mode and 8 kV common mode
Sustainability rating
-
Initial performance (IEC compliant)
Initial luminous flux (system flux)
3026 lm
Luminous flux tolerance
