Phoenix Contact Cable - CABLE-EC56-F-F-0,34-S/... 2906066


Price:
₦709,006.58
request for quote

Description

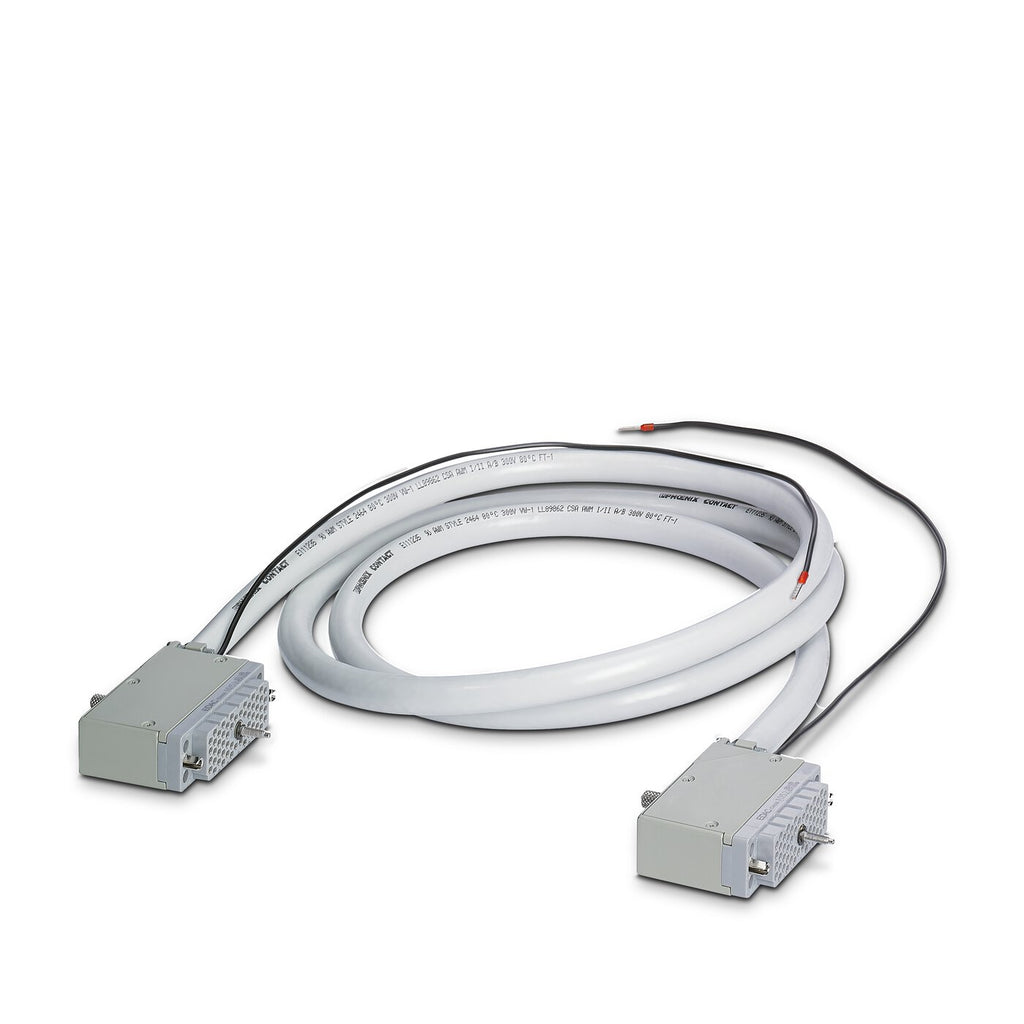

Assembled shielded round cable; connection 1: EDAC/ELCO socket strip (1x 56-position); connection 2: EDAC/ELCO socket strip (1x 56-position); cable length: variable



Ambient temperature (operation) -20 °C ... 60 °C
Ambient temperature (storage/transport) -20 °C ... 70 °C

Electrical properties
Max. permissible operating voltage 25 V AC
60 V DC
Max. current carrying capacity per path 1.5 A

Cable/line
Cable length variable
Number of positions 56
Shielded yes
Conductor type Assembled shielded round cable
Conductor structure signal line 19x 0.15 mm
AWG signal line 22
Conductor cross section 56x 0.34 mm²
External cable diameter 14.2 mm
Conductor material Bare Cu litz wires
Halogen-free no
Flame resistance IEC 60332-1
DIN VDE 0482 Part 332-1

Connection data
Field level
Connection method EDAC/ELCO socket strip
Coding 1-1
Number of connections 1
Number of positions 56
