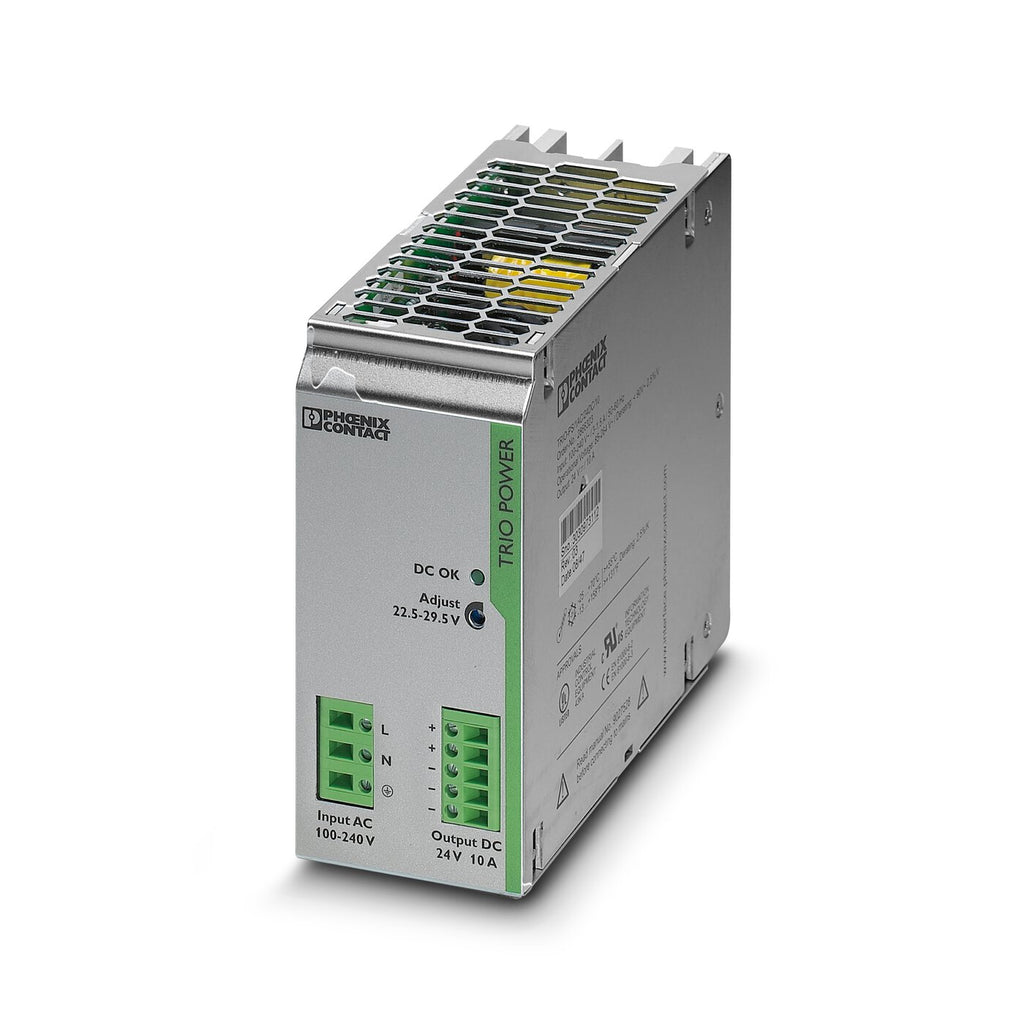

Phoenix Contact Power supply unit - TRIO-PS/1AC/24DC/10


Price:
₦449,280.74
request for quote

Description

Primary-switched TRIO POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/10 A

TRIO POWER power supplies with standard functionality
TRIO POWER is particularly suited to standard machine production, thanks to 1- and 3-phase versions up to 960 W. The wide-range input and the international approval package enable worldwide use.
The robust metal housing, the high electric strength, and the wide temperature range ensure a high level of power supply reliability.


Technical Data

Input data
AC operation
Nominal input voltage range 100 V AC ... 240 V AC
Input voltage range 85 V AC ... 264 V AC (Derating < 90 V AC: 2,5 %/V)
Derating < 90 V AC (2.5 %/V)
Input voltage range AC 85 V AC ... 264 V AC (Derating < 90 V AC: 2,5 %/V)
Electric strength, max. 300 V AC
Voltage type of supply voltage AC
Inrush current < 15 A
Inrush current integral (I2t) 0.7 A2s
AC frequency range 45 Hz ... 65 Hz
Mains buffering time > 24 ms (120 V AC)
> 24 ms (230 V AC)
Current consumption 3 A (100 V AC)
1.5 A (240 V AC)
Nominal power consumption 272 VA
Protective circuit Transient surge protection; Varistor
Power factor (cos phi) 0.99
Typical response time < 1 s
Input fuse 6.3 A (slow-blow, internal)
Permissible backup fuse B10 B16
Recommended breaker for input protection 10 A ... 16 A (Characteristics B, C, D, K)
Discharge current to PE < 3.5 mA
