Description
Product description
Design Access sensor VX
Description CMC III sensors are used for monitoring the physical environment and can be connected directly to the PU via a CAN bus connection cable RJ45. The sensors may also be linked together to form a bus.
Benefits Fast connection and automatic detection via plug & play Power is supplied via the CAN-BUS interface.
Equipment Sensor: Reed contact/magnet, Max. 5 reed contacts in series
Applications Enclosure monitoring in IT, industry and facility management Monitoring of enclosures, rooms and containers in the IT environment
Material Plastic
Supply includes Sensor, Mounting plate, Assembly parts, Access sensor VX,
Cable 0.5m
Cable 0.5m
Rated operating voltage 24 V (DC)
Connection to the CAN bus Indirect, via CMC III CAN bus interfaces
Operating temperature Operation (environment): +5 °C...+45 °C
Ambient humidity (non-condensing) Operation (environment): 5 % - 95 %
Packs of1 pc(s)
Weight/pack 0.09 kg
EAN 4028177925830
Customs tariff number 85319000
ETIM 7.0EC002627
ETIM 6.0EC002627
eCl@ss 8.0/8.1 27189253
eCl@ss 6.0/6.1 27189253

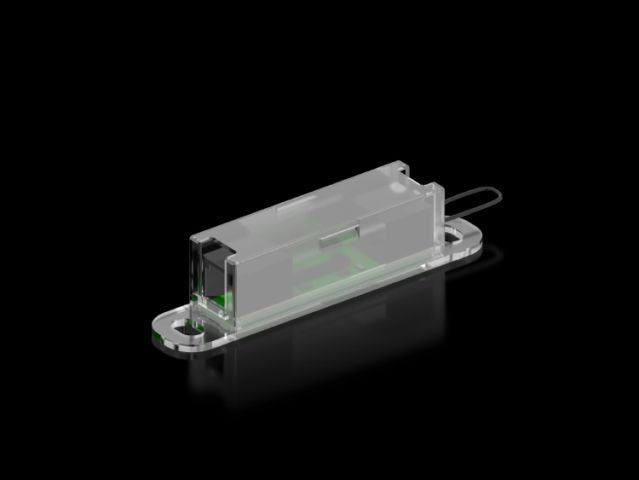

Product description CMC III Access sensor VX
