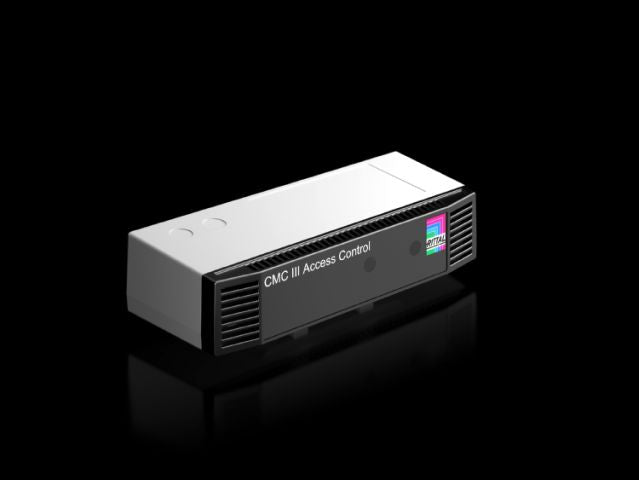

RITTAL DK 7030.202 CMC III Access Control


Price:
₦391,552.20
request for quote

Description

Product description

Description:
CMC III unit for controlling and monitoring access to enclosures. One handle and one reader unit may be connected to one CMC III access control. The handles can be linked to various numerical codes or transponder cards via the CMC III Processing Unit/Compact website, which means that all the handles connected to a CMC III Processing Unit/Compact can be controlled with just one reader unit. The integral infrared sensor also ensures that the status of the controlled door (open/closed) is monitored.
Equipment:
- Record of every access and each time the door is opened, with user information and time stamp
- Supports one central reader unit per CMC III system
- Fixed allocation between handles and reader units
- Four-eyes principle
- Central administration of access rights across all systems and locations with RiZone
- Activating the LED display in the handle
Function principle:
For connecting one handle and one reader unit to monitor a door;
Integral IR access sensor
Material:
Plastic
Front: Smooth
Enclosure: Textured
Surface finish:
Front: Smooth
Enclosure: Textured
Colour:
Front: RAL 9005
Enclosure: RAL 7035
Protection category:
IP to IEC 60529
IP 30
Supply includes:
CMC III access control
Mounting plate
Assembly parts
To fit:
Enclosure type: VX IT
Enclosure type: TS IT
Enclosure type: TE 8000
Dimensions:
Width: 110 mm
Height: 30 mm
Depth: 40 mm
Maximum no. of users:
CMC III Processing Unit Compact
2CMC III Processing Unit - 16
IoT interface: 5
Operating temperature:
Operation (environment): +0 °C...+55 °C
Ambient Humidity (non-condensing):
Operation (environment): 5 % - 95 %
Interfaces/connections:
General: RJ12General
Flat-pin connector
Bus system: 2 x RJ45 CAN bus
Packs of: 1 pc(s)
Weight/pack: 0.183 kg
EAN: 4028177925847
Customs tariff number: 85311095
ETIM 7.0: EC002627
ETIM 6.0: EC002627
eCl@ss 8.0/8.1: 27189253
eCl@ss 6.0/6.1: 27189253
Product description: CMC III Access Control
