Description
Product description
Design Radio technology: EnOcean, 868 MHz
Description Up to 16 radio comfort handles VX and/or defined EnOcean sensors may be connected via the wireless unit. In tricky environments with a lot of interference, additional CMC III wireless units may be used at alternative locations. This allows the wireless comfort handles/sensors to send their signal to multiple wireless units and facilitate redundancy. The wireless units can also be placed in multiple separate rooms/units to connect the existing radio handles and sensors. The maximum overall length of the CAN bus route is 50 m/bus. The unit is compatible with the CMC III processing unit.
Benefits High standard of security, thanks to encrypted radio transmission of security-relevant signalsRedundant transmission with up to 16 wireless units
Material Plastic
Colour Front: RAL 9005
Enclosure: RAL 7035
Protection category IP to IEC 60 529 IP 30
Supply includes Basic systemAerial with magnetic base Connection cable (2.5 m) Assembly parts for mounting on surfaces
Note More information on the compatibility of other EnOcean sensors can be found at www.rittal.com under Model No. 7030.690
Dimensions Width: 138 mm, Height: 40 mm, Depth: 132 mm
Maximum no. of users CMC III Processing Unit: 16
Installation dimensions Installation depth: 120 mmBuild depth: 12 mm
Packs of 1 pc(s)
EAN 4028177926141
Customs tariff number 85311095
ETIM 7.0EC002627
ETIM 6.0EC002627
eCl@ss 8.0/8.1 27189253
eCl@ss 6.0/6.1 27189253

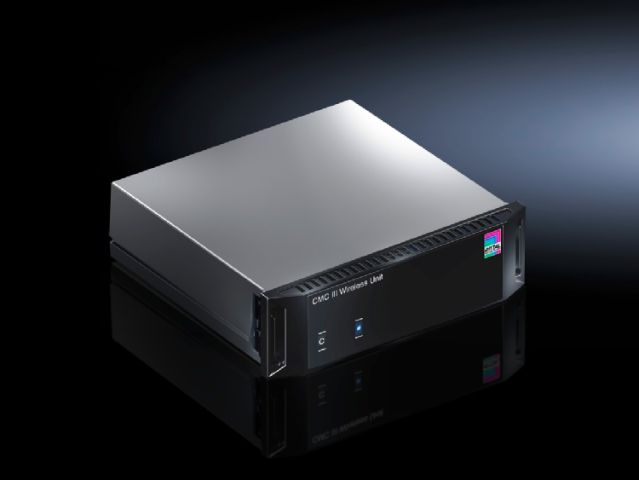

Product description CMC III Wireless Unit, 868MHz
