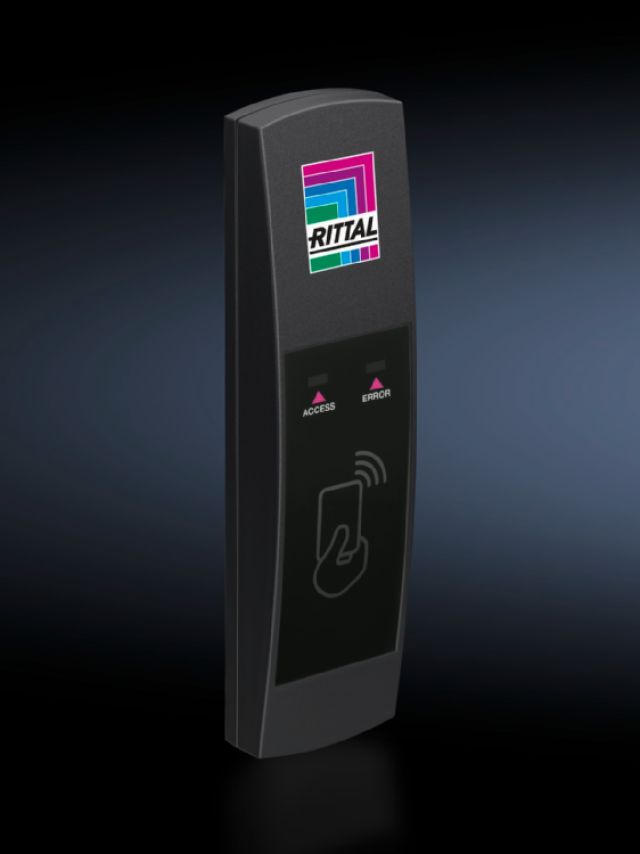

RITTAL IT 7030.233 CMC III Transponder reader VX, RAL 9005


Price:
₦516,184.20
request for quote

Description

Design Transponder reader for Mifare, Legic Advant, HID, FeliCa (Legic Prime available on request).
Description For managing access to doors.
BenefitsOne reader system may be used for multiple handles, provided they are linked to the same CMC III system or IoT interfaceFour-eyes principle ensures high-security standards.
Function principle Direct connection to the CMC III Access Control or CMC III Door Control ModuleOptical (LED) and acoustic (alarm sound) status display Management of authorizations via CMC III system, IoT interface or RiZoneDoor opening with a maximum of two linked numerical codes (four-eyes principle)CMC III control of: Online comfort handle VX, Automatic Door Opening System (vent flaps), relay outputs from the CMC III.
Material Plastic
Technical specifications Frequency RFID
Protection category IP to IEC 60 529 IP 40
Dimensions Width: 50 mm, Height: 190 mm, Depth: 25 mm
Installation options On VX IT doors, Adjacent to room doors
Transponder tags (standard/type) ISO14443A - MIFARE Classic, ISO14443A - MIFARE Classic EV1, ISO14443A - MIFARE DESFire EV1, ISO14443A - MIFARE DESFire EV2, ISO14443A - MIFARE Plus S, X, ISO14443A - MIFARE Smart MX, ISO14443A - MIFARE Ultralight, ISO14443A - MIFARE Ultralight C, ISO14443A - NTAG2xx, ISO18092 ECMA-340 - Sony FeliCa, ISO15693 - HID iCLASS SE/SR, ISO15693 - ICODE SLI, ISO15693 - LEGIC Advant, ISO15693 - Tag-it
Packs of 1 pc(s)
Weight/pack 0.28 kg
EAN 4028177936546
Customs tariff number 85311095
ETIM 7.0EC002627
ETIM 6.0EC002627
eCl@ss 8.0/8.1 27189253
eCl@ss 6.0/6.1 27189253
Product description CMC III Transponder reader VX, RAL 9005
