Description
Product description
Description:
For door locking, handle lever monitoring and status display. It can be opened directly via a 24 V DC supply voltage or connected to the CMC III or IoT interface via the CMC III Access Control.
Benefits:
- Remote control and an extensive range of functions for automated access control by linking to the CMC III or IoT interface, e.g. activation via an optional coded lock or transponder reader
- Optical LED status display of the handle or superordinate CMC III system in the rack
- Individual activation and colour selection configurable via CMC III or IoT interface
- Prepared for use of a 40 mm semi-cylinder to DIN 18 252
Material:
Die-cast zinc
Plastic
Colour:
RAL 9005
Protection category:
IP to IEC 60529
IP 30
Supply includes:
- Comfort handle for profile half-cylinder
- Connection cable RJ12, 2.9 m
- Handle adaptor for VX IT aluminium glazed door and VX IT aluminium sheet steel door, vented (door hinge on right/left)
Assembly parts: N/A
To fit:
Enclosure type: VX
Enclosure type: VX IT
Enclosure type: TS IT
Dimensions:
Width: 41 mm
Height: 386 mm
Depth: 42 mm
Rated operating voltage: 24 V (DC)
Installation options: N/A
Rated current:
With DC (max.): 60 mA
Packs of: 1 pc(s)
Weight/pack: 1.04 kg
EAN: 4028177926059
Customs tariff number: 83024110
ETIM 7.0: EC002627
ETIM 6.0: EC002627
eCl@ss 8.0/8.1: 27189253
eCl@ss 6.0/6.1: 27189253

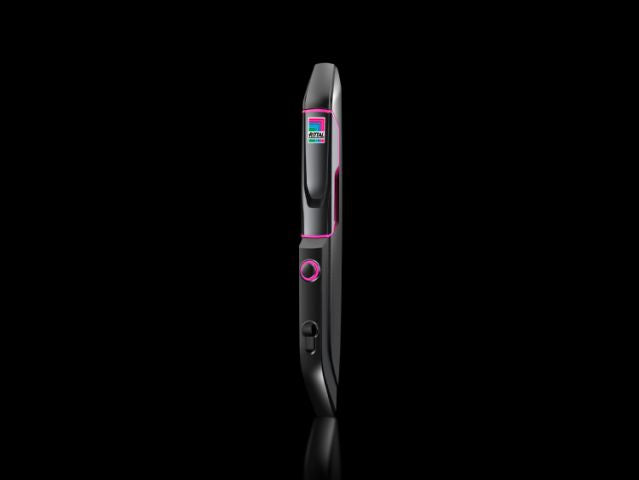

Product description: CMC III Online comfort Handle VX, RAL9005
