Description
Product description
Description:

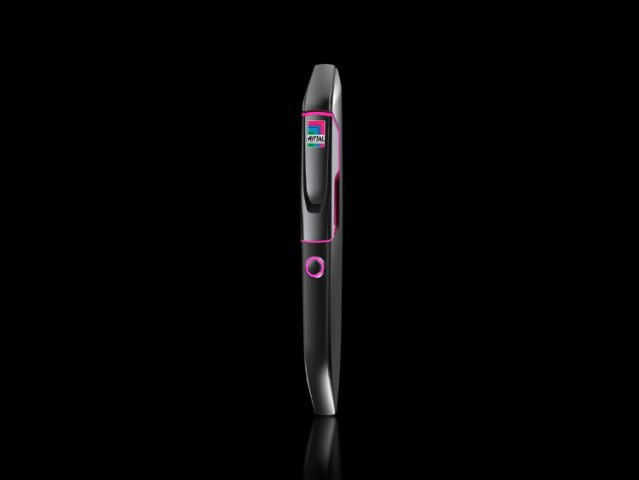

Battery operated radio handle for door locking, handle lever/rack door monitoring and status display.
Benefits:
Supports remote control via radio by linking to CMC III
Stand-alone operation supported
Easily retrofitted without any machining using radio technology
Optical LED status display of the handle or superordinate CMC III system in the rack
Individual activation and colour selection configurable via CMC III
Service life of the integral batteries is up to 2 years.
Supports use of the handle without radio technology, connection to CMC III via optional online adapter
High standard of security thanks to encrypted radio transmission of security-relevant signals using Advanced Encryption Standard 128 Bit (AES 128)
Function principle:
Battery operation: EnOcean 868 MHz radio technology with encryption
Operation with CMC III: Up to 128 radio handles on one CMC III system
Stand-alone operation: handle settings via master card or Android app with NFC-enabled smartphone
Supports emergency opening via an integral USB-C slot, transponder handle and external power supply
Integral transponder card reader for Legic Advant, HID, FeliCa and NFC via Android app (Legic Prime available on request)Integral monitoring of lever handle
Integral rack door monitoring of the handle position with a compass signal or infrared sensor
Material:
Die-cast zincPlastic
Colour: RAL 9005
Protection category:
IP to IEC 60529
IP 30
Supply includes:
Handle
2 batteries, type CR123A
Handle adaptor for VX IT aluminium glazed door and VX IT aluminium sheet steel door, vented (door hinge on right/left)
1 Mifare classic transponder card
Assembly parts
Note:
Stand-alone, master card, with max. 10 user cards per handle
Stand-alone, Android app and master card, with max. 50 user cards per handle
CMC III via radio, with max. 1000 user cards per handle
To fit
Enclosure type: VX IT
Enclosure type: VX
Dimensions:
Width: 41 mm
Height: 377 mm
Depth: 27 mm
Installation options: N/A
Maximum no. of users:
CMC III Processing Unit: 128
IoT interface: 16
Packs of: 1 pc(s)
EAN: 4028177926073
Customs tariff number: 83024110
ETIM 7.0: EC002627
ETIM 6.0: EC002627
eCl@ss 8.0/8.1: 27189253
eCl@ss 6.0/6.1: 27189253
Product description: Wireless ComfortHandle VX, 868MHz, RAL9005
