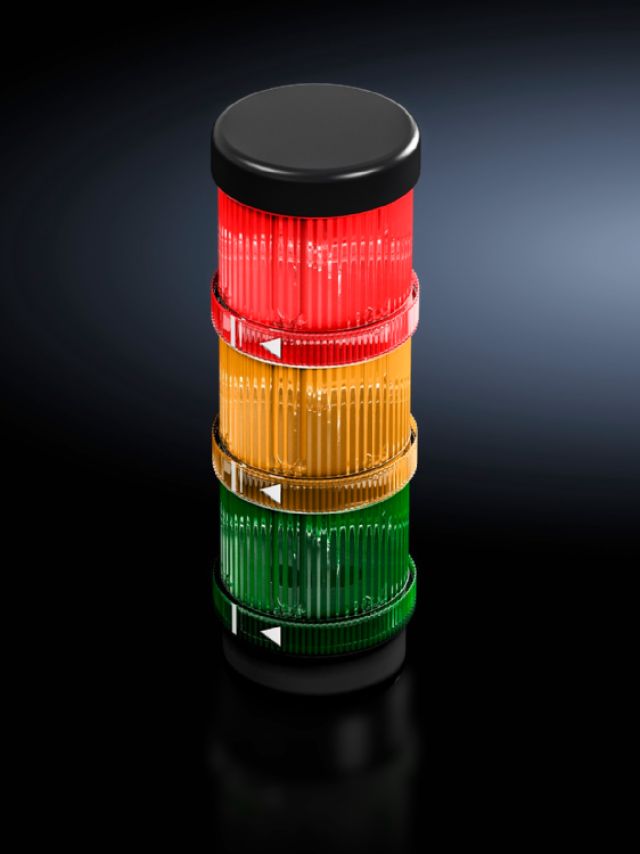

RITTAL SG 2372.101 SG signal pillar, LED compact for tube


Price:
₦436,073.52
request for quote

Description

Product description

Design for conduit mounting
Benefits Complete, ready-to-connect solution Extremely long service life of the LEDs (max. 100,000 hours, therefore maintenance-free) Minimal assembly work and warehousing costs.
Technical specifications 3-stage, red, yellow, green,  Transmission angle: 3 x 120°Flashing function: Controllable via PLC
Protection category IP to IEC 60 529 IP 65
Dimensions Height: 343 mm
Rated operating voltage 24 V
Min. cable diameter 3 mm
Max. cable diameter 6.5 mm
Operating temperature Operation (environment): -20 °C...+50 °C
Type of electrical connection Screwless spring terminals
Equipment (electrical) Light: LEDs
Cable entry Metric diameter: M12 x 1.5 , Number x metric diameter: M12 x 1.5
Packs of 1 pc(s)
Weight/pack 0.308 kg
EAN 4028177953758
Customs tariff number 85318070
ETIM 7.0EC001042
ETIM 6.0EC001042
eCl@ss 8.0/8.1   27371230
eCl@ss 6.0/6.1 27371230
Product description SG signal pillar, LED compact for tube
