RITTAL VX 8618.823 VX EMC gland plate, width 1200 mm


Price:
₦433,047.73
request for quote

Description

Product description

Description For shielded cables with a maximum diameter of 20 mm. Combined EMC/IP seal provides low-resistance contact between cable shield and gland plate. For all 400, 500, 600 and 800 mm deep enclosures in conjunction with standard gland plates.
Material Sheet steel
Surface finish Zinc-plated

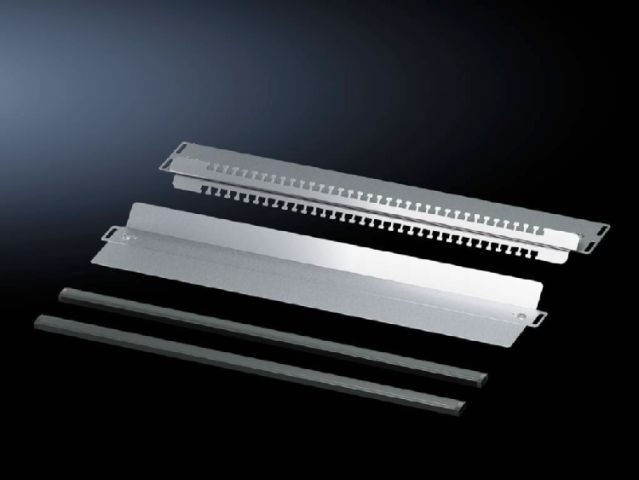

Supply includes 1 gland plate with T-head punching, 1 sliding gland plate, 2 IP/EMC gaskets
Note on Model No. For one enclosure half only
To fit Enclosure type: VXWidth: = 1,200 mm
Packs of 1 pc(s)
Weight/pack 2.16 kg
EAN4028177929876
Customs tariff number 94039010
ETIM 7.0 EC002620
ETIM 6.0 EC002620
eCl@ss 8.0/8.1 27189261
eCl@ss 6.0/6.1 27189214
Product description VX EMC gland plate, width 1200 mm
