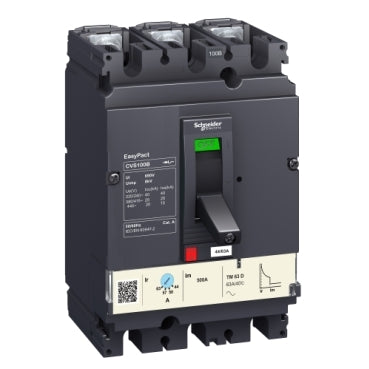

Schneider Electric circuit breaker EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 3P 3d


Price:
₦43,208
request for quote

Description

Schneider Electric circuit breaker EasyPact CVS100B

EasyPact CVS160B is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS160B is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

range of product EasyPact CVS100...250
product or component type Circuit breaker
device short name CVS160B
device application Distribution
poles description 3P
protected poles description 3D
Earth leakage protection (Vigi add on) Without
[In] rated current 160 A at 40 °C
breaking capacity code B
