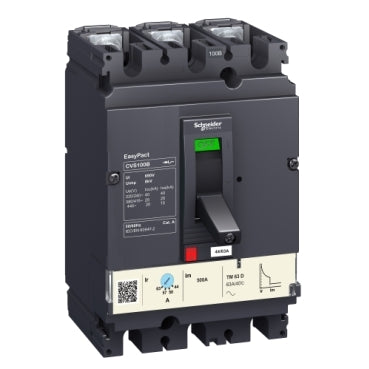

Schneider Electric circuit breaker EasyPact CVS100B, 25 kA at 415 VAC, 63 A rating thermal magnetic TM-D trip unit, 3P 3d


Price:
₦39,829
request for quote

Description

Schneider Electric LV525313

EasyPact CVS160B is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS160B is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

range of product
Easypact CVS100…250
product or component type
Circuit breaker
device short name
CVS160B
device application
Distribution
poles description
4P
protected poles description
3d
neutral position
Left
Earth leakage protection (Vigi add on)
Without
[In] rated current
250 A at 40 °C
breaking capacity code
B
network type
AC
[Icu] Breaking capacity
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
utilisation category
Category A
trip unit name
TM-D
trip unit technology
Thermal-magnetic
trip unit rating
250 A at 40 °C
protection type
Overload protection (thermal)
Short-circuit protection (magnetic)
Complementary
network frequency
50/60 Hz
control type
Toggle
mounting mode
Fixed
mounting support
Backplate
upside connection
Front
downside connection
Front
connections – terminals
Screw connection
[Uimp] rated impulse withstand voltage
8 kV conforming to EN/IEC 60947-2
thermal protection adjustment range
175…250 A
[Ics] rated service breaking capacity
15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
mechanical durability
20000 cycles
electrical durability
10000 cycles 415 V In conforming to IEC 60947-2
connection pitch
35 mm
contact position indicator
Yes
neutral protection setting
No protection (3d)
long time pick-up adjustment type Ir
Adjustable
long time pick-up adjustment range
0.7…1 x In
long time delay adjustment type
Fixed
instantaneous pick-up adjustment type Ii
Fixed
instantaneous pick-up adjustment range
2500 A
height
161 mm
width
140 mm
depth
86 mm
net weight
2.6 kg
