Schneider Electric LV429457


Price:
₦333,046
request for quote

Description

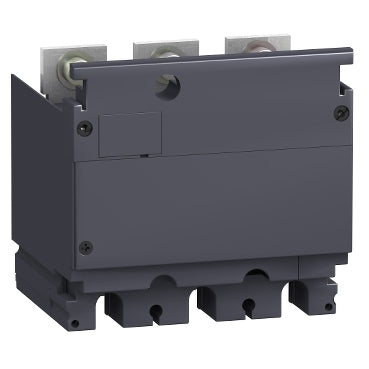

Schneider Electric LV429457

This is an additional current transformer module of 100A rating for 3 poles ComPact NSX 100/160/250 devices. This module enables direct connection of a measurement device such as an ammeter. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 100A. The current at the secondary winding is 5A. The power consumption is 1.6VA. The class accuracy is 4.5. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.

Specifications

Specification


device short name Current transformer module
product or component type Current transformer
device application Control
range compatibility

ComPact NSX100
ComPact NSX160
ComPact NSX250



poles description 3P
[In] rated current 100 A
current transformer ratio 100/5 A
power consumption in VA 1.6 VA
accuracy class Class 4.5
Complementary
auxiliary connection terminal Cable connector 2.5 mm²
Environment
electrical shock protection class Class II
IP degree of protection IP40 conforming to IEC 60529
