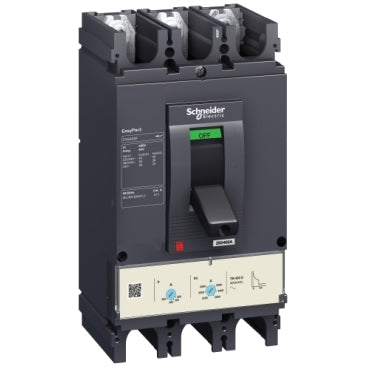

Schneider Electric LV540306 circuit breaker EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 3P 3d

EasyPact CVS400F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 400A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS400F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

range of product EasyPact CVS400...630
product or component type Circuit breaker
device short name CVS400F
device application Distribution
poles description 3P
protected poles description 3D
Earth leakage protection (Vigi add on) Without
[In] rated current 400 A at 40 °C
breaking capacity code F
network type AC
[Icu] Breaking capacity 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
utilisation category Category A
trip unit name TM-D
trip unit technology Thermal-magnetic
trip unit rating 400 A at 40 °C
protection type Short-circuit protection (magnetic)
Overload protection (thermal)
Complementary
network frequency 50/60 Hz
control type Toggle
mounting mode Fixed
mounting support Backplate
upside connection Front
downside connection Front
connections - terminals Screw connection
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
thermal protection adjustment range 280…400 A
[Ics] rated service breaking capacity 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
23 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
mechanical durability 15000 cycles
electrical durability 6000 cycles 415 V In conforming to IEC 60947-2
connection pitch 45 mm
contact position indicator Yes
long time pick-up adjustment type Ir Adjustable
long time pick-up adjustment range 0.7...1 x In
long time delay adjustment type Fixed
instantaneous pick-up adjustment type Ii Adjustable
instantaneous pick-up adjustment range 5...10 x In
height 255 mm
width 140 mm
depth 110 mm
net weight 4.7 kg
Environment
electrical shock protection class Class II
standards EN 60947-2
IEC 60947-2
product certifications GOST
IEC
IP degree of protection IP40
pollution degree 3 conforming to IEC 60664-1
ambient air temperature for operation -25…70 °C
ambient air temperature for storage -50…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 4.931 kg
Package 1 Height 15.0 cm
Package 1 width 16.0 cm
Package 1 Length 29.0 cm
Contractual warranty
Warranty 18 months
