Description

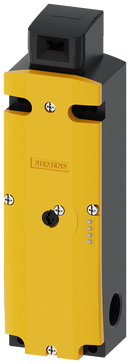

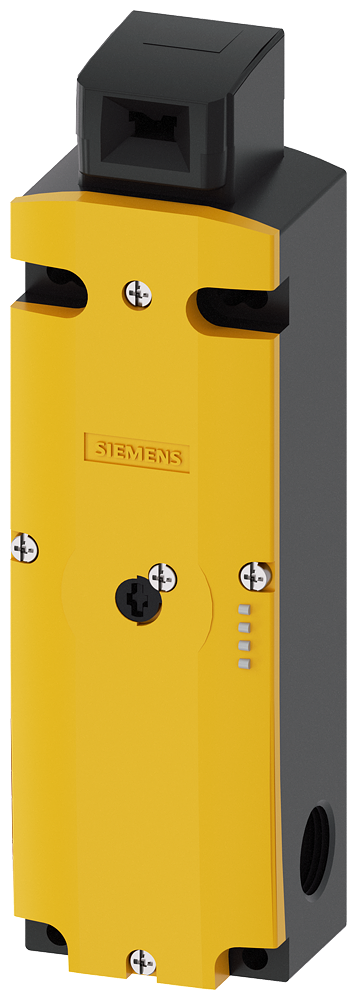

Safety position switch locking force 1300N, 3X
safety position switch with tumbler locking force 1300 N 5 approach directions plastic enclosure, M12 plug ASIsafe integrated high degree of protection IP69, IEC 60529 channel 1=actuator 2 NC according to principle of 2v2 evaluation channel 2=magnet 1 NC spring-locked auxiliary release on front magnet voltage 24 V AC/DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO the matching separate actuator 3SE5000-0AV0 must be ordered separately Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-interface bus system.Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. 3D-coded actuators guarantee strong protection against manipulation. Two LEDs indicate the current state of the device. The switches can be used for the highest safety requirements specified by PL e or SIL 3. Device versions are also available with a high IP69K degree of protection.Various enclosure sizes are available in plastic or metal. In addition, versions are available with separate actuator with tumbler, or as a safety hinge switch. The portfolio is completed by a series of devices with IP69K degree of protection.Depending on the design, actuator heads, separate actuators, plug-in connectors and other mounting/connection accessories are available.Safety is a SIRIUS business.
DOWNLOAD DATASHEET
VIEW MORE PRODUCT DETAILS
VIEW ON YOUTUBE
safety position switch with tumbler locking force 1300 N 5 approach directions plastic enclosure, M12 plug ASIsafe integrated high degree of protection IP69, IEC 60529 channel 1=actuator 2 NC according to principle of 2v2 evaluation channel 2=magnet 1 NC spring-locked auxiliary release on front magnet voltage 24 V AC/DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO the matching separate actuator 3SE5000-0AV0 must be ordered separately Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-interface bus system.Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. 3D-coded actuators guarantee strong protection against manipulation. Two LEDs indicate the current state of the device. The switches can be used for the highest safety requirements specified by PL e or SIL 3. Device versions are also available with a high IP69K degree of protection.Various enclosure sizes are available in plastic or metal. In addition, versions are available with separate actuator with tumbler, or as a safety hinge switch. The portfolio is completed by a series of devices with IP69K degree of protection.Depending on the design, actuator heads, separate actuators, plug-in connectors and other mounting/connection accessories are available.Safety is a SIRIUS business.
