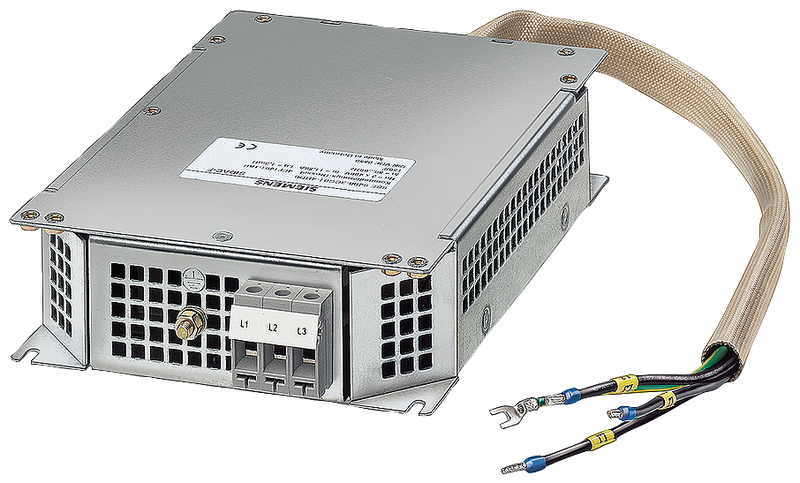

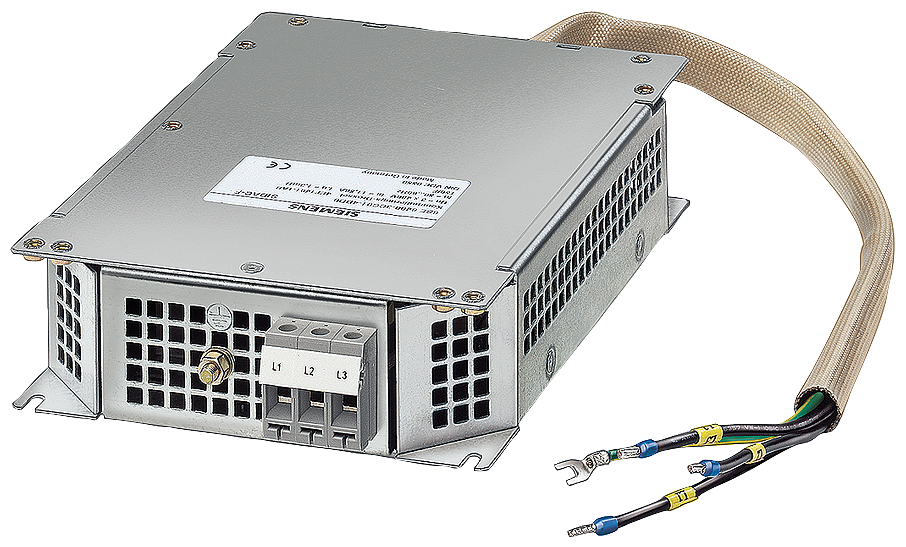

SIEMENS 6SE6400-3TD00-4AD0 sine-wave filter 4,5 A


request for quote

Description

sine-wave filter 4,5 A
SINAMICS Sinus filter for Power Module FSD Stand-alone 380-480V 3AC 61.8A Electrical filter SINAMICS sinewave filter for the PM 250 Power Module of the SINAMICS G120 modular frequency converter. Sinewave filters limit both the rate of change of the voltage (dv/dt) and the peak voltages across the motor winding. In a similar way to an output reactor, it permits connection of longer motor cables. Shaft currents are also substantially reduced. This makes it possible to run standard motors with standard insulation and without insulated bearings connected to SINAMICS. The voltage load on the motor winding is therefore almost at the same level as in direct on-line operation. Due to the very small rates of change of the voltage on the motor cable, the sinewave filter also has a positive effect on the electromagnetic compatibility (EMC). The sinewave filter is available in a three-phase voltage range 380 V to 480 V in frame sizes FSC to FSF. SINAMICS – simply my drive!
DOWNLOAD DATASHEET

VIEW MORE PRODUCT DETAILS

VIEW ON YOUTUBE
