Description

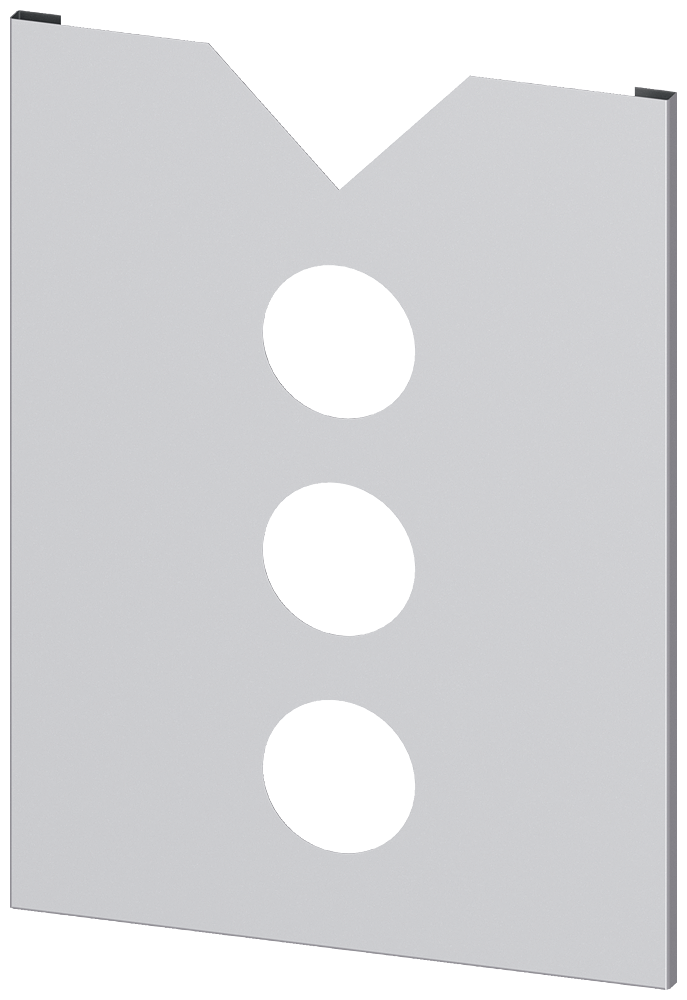

ALPHA DIN, circuit diagram pocket, DIN A3, made of sheet steel, 10 mm deep
Circuit diagram pocket, 30 mm deep for DIN A4 upright, self-adhesive The ALPHA distribution board is an overall system made up of wall-mounted and floor-mounted distribution boards for installing devices up to 1250 A. ALPHA - the system idea counts. The ALPHA distribution systems are tested in accordance with IEC 61439 and are based on a common platform structure with comprehensive designs up to 1250 A. Due to the platform structure and the modular layout, the device-specific assembly kits can be integrated in various distributor variants. This facilitates planning and installation. The equipping is done individually and project-specifically. The configuration software SIMARIS configuration provides support from planning to documentation of the power distribution boards and the ALPHA distribution boards. Siemens offers a comprehensive portfolio of protection, switching, metering and monitoring devices, distribution systems as well as switches and socket outlets for safe and efficient electrical infrastructure in buildings and industry.
