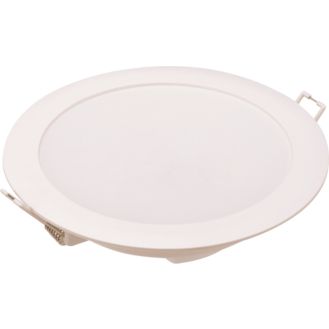

SIGNIFY PHILIP DN020B G3 LED15/CW 18W 220-240V D175 GM 929002510508

SIGNIFY PHILIP DN020B G3 LED15/CW 18W 220-240V D175 GM 929002510508

Specifications

General information

Light source color	865 cool daylight
Light source replaceable	No
Luminaire light beam spread	110°

Connection	Flying leads/wires
Protection class IEC	Safety class II

Operating and electrical

Input Voltage	220 to 240 V V
Input Frequency	50 or 60 Hz

Power Factor (Min)

0.5

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Plastic
Reflector material	Polycarbonate
Optic material	Polycarbonate
Fixation material	Stainless steel
Optical cover/lens finish	Frosted
Overall length	225 mm

Overall width	225 mm
Overall height	38 mm
Overall diameter	190 mm
Color	White
Dimensions (Height x Width x Depth)	38 x 225 x 225 mm (1.5 x 8.9 x 8.9 in)

Approval and application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK03  [ 0.3 J]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	1500 lm
Initial LED luminaire efficacy	83.00 lm/W
Init. Corr. Color Temperature	6500 K
Init. Color Rendering Index	80

Initial chromaticity	(0.3123, 0.3283) 6
Initial input power	18 W
Power consumption tolerance	+/-10%

Over time performance (IEC compliant)

Median useful life L70B50

20000 h

Application conditions

Ambient temperature range

-20 to +40 °C

Product data

Full product code	871869977941200
Order product name	DN020B G3 LED15/CW 18W 220-240V D175 GM
EAN/UPC - Product	8718699779412
Order code	929002510508
Numerator - Quantity Per Pack	1

Numerator - Packs per outer box	30
Material Nr. (12NC)	929002510508
Net Weight (Piece)	0.180 kg
