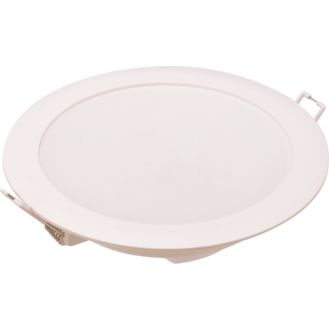

SIGNIFY PHILIP DN020B G3 LED20/CW 23W 220-240V D200 GM 929002510808


Price:
₦9,161.58
request for quote

Description

Specifications

General information
Light source color
865 cool daylight
Light source replaceable
No
Luminaire light beam spread
110°
Connection
Flying leads/wires
Protection class IEC
Safety class II
Operating and electrical
Input Voltage
220 to 240 V V
Input Frequency
50 or 60 Hz
Power Factor (Min)
0.5
Controls and dimming
Dimmable
No

Mechanical and housing
Housing Material
Plastic
Reflector material
Polycarbonate
Optic material
Polycarbonate
Fixation material
Stainless steel
Optical cover/lens finish
Frosted
Overall length
105 mm
Overall width
105 mm
Overall height
38 mm
Overall diameter
225 mm
Color
White
Dimensions (Height x Width x Depth)
38 x 105 x 105 mm (1.5 x 4.1 x 4.1 in)
Approval and application
Ingress protection code
IP20  [ Finger-protected]
Mech. impact protection code
IK03  [ 0.3 J]
Initial performance (IEC compliant)
Initial luminous flux (system flux)
2000 lm
Initial LED luminaire efficacy
86.00 lm/W
Init. Corr. Color Temperature
6500 K
Init. Color Rendering Index
80
Initial chromaticity
(0.3123, 0.3283) 6
Initial input power
23 W
Power consumption tolerance
+/-10%
Over time performance (IEC compliant)
Median useful life L70B50
20000 h

Application conditions
Ambient temperature range
-20 to +40 °C

Product data
Full product code
871869977947400
Order product name
DN020B G3 LED20/CW 23W 220-240V D200 GM
EAN/UPC - Product
8718699779474
Order code
929002510808
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
30
Material Nr. (12NC)
929002510808
Net Weight (Piece)
0.235 kg
