Description

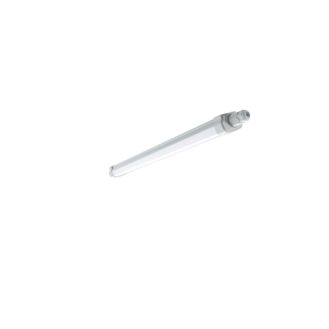

SIGNIFY PHILIP WT068C NW LED18 L600 PSU 911401881680
Specifications
- General information
-
Light source color 840 neutral whiteOptical cover/lens type -Control interface -Protection class IEC Safety class IICE mark CE markNumber of products on MCB of 16 A type B 1Light source engine type LED - Operating and electrical
-
Input Voltage 220 to 240 VInput Frequency 50 or 60 HzPower Factor (Min) 0.9 - Controls and dimming
-
Dimmable No
- Mechanical and housing
-
Housing Material PolycarbonateOptical cover/lens material PolycarbonateOptical cover/lens finish OpalOverall length 598 mmOverall width 69 mmOverall height 74 mmColor White and gray - Approval and application
-
Ingress protection code IP66 [ Dust penetration-protected, jet-proof]Mech. impact protection code IK06 [ 1 J] - Initial performance (IEC compliant)
-
Initial luminous flux (system flux) 1800 lmLuminous flux tolerance +/-10%Initial LED luminaire efficacy 110 lm/WInit. Corr. Color Temperature 4000 KInit. Color Rendering Index >80Initial input power 16.5 WPower consumption tolerance +/-10% - Application conditions
-
Ambient temperature range -20 to +45 °C
- Product data
-
Full product code 871016336062199Order product name WT068C NW LED18 L600 PSUEAN/UPC - Product 8710163360621Order code 911401881680Numerator - Quantity Per Pack 1Numerator - Packs per outer box 12Material Nr. (12NC) 911401881680Net Weight (Piece) 0.270 kg
